Sinutherm wall system

Insulating panels

“ Fire rating: B-s3, d0 according to EN 13501-1 ”

Ask for a quote

Presentation

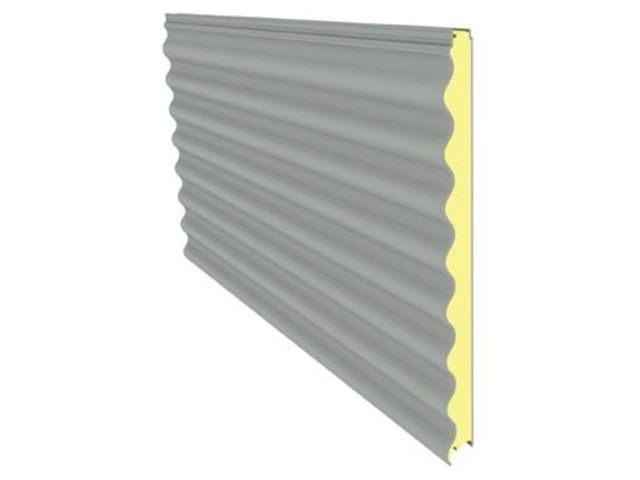

The Sinutherm wall is a complete wall system based on sandwich panels with sinusoidal corrugation on the exterior panel and a slightly ribbed interior surface.

Consisting of two coated steel panels, produced by cold roll forming, between which a CFC-free polyurethane foam is factory injected.

Sinutherm panels are produced from steel, which is protected by a GALFAN coat on both sides and have a super polyester or PVDF exterior coating.

Fixing:

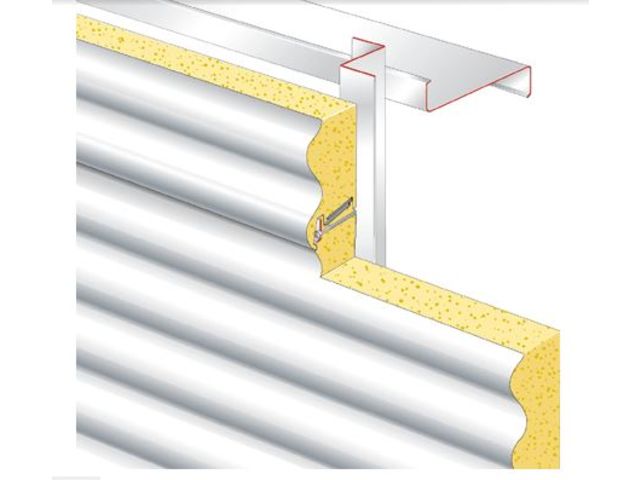

The panels are fixed horizontally to sub-girts by means of self-drilling screws, which are hidden in the longitudinal overlaps.
These overlaps have a factory applied watertight tape sealant.

Colours and coatings:

• Interior coating: Super polyester in light grey
• Exterior coating: Super polyester

A range of fully compatible accessories is available for the Sinutherm wall system. They ensure complete water tightness and pleasing aesthetics:

• Single or double personnel doors
• Truck doors
• Window frames
• Framed openings
• Wall louvres
• Flashings and trims
