Polar wall system

Insulating panels

Ask for a quote

Presentation

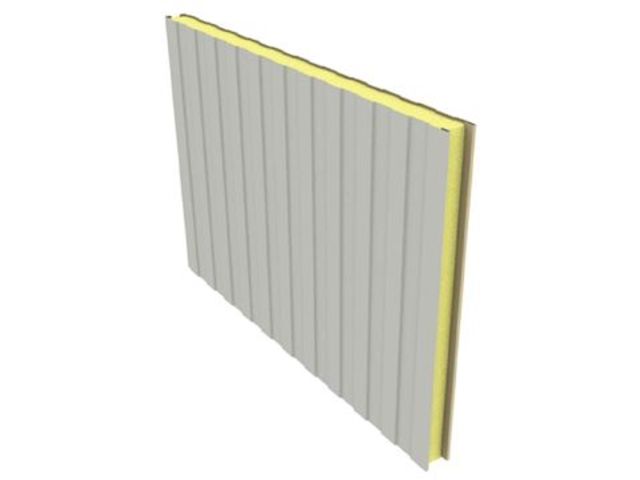

The Polar wall is a complete wall system based on sandwich panels. It includes all necessary framed openings, fasteners and finishing flashings.

Different insulation thicknesses and panel profiles are available within the Polar wall system.

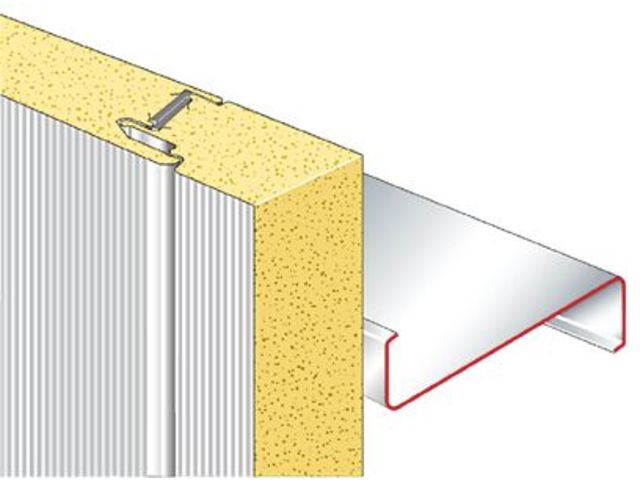

They consist of two profiled ribbed coated steel panels, produced by cold roll forming, between which a CFC free polyurethane foam is factory injected. Tongue and groove jointing arrangement ensure watertightness.

FIXING:

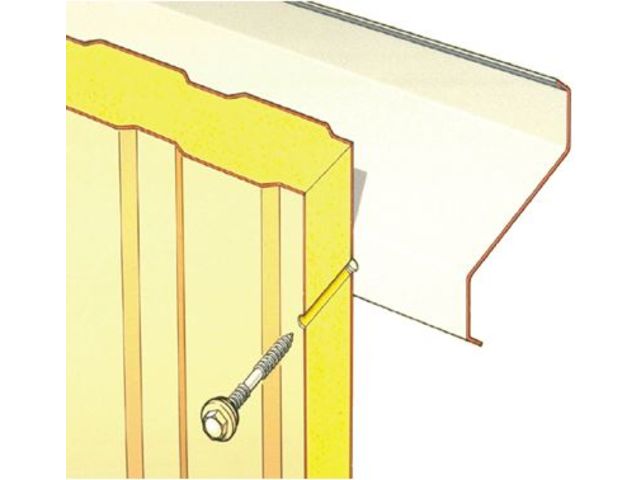

Polar panels are fixed vertically to the secondary framing by special screws, complete with colour matching composite nylon heads or, as an option, with hidden fasteners.

COLOURS AND COATINGS:

The Polar wall systems offer different coatings satisfying the various climatic requirements.
Exterior coatings and colours are those published by the panel manufacturer.
Interior coatings: Super polyester in grey white

A range of fully compatible accessories is available for each of the Polar wall systems. They ensure complete watertightness and pleasing aesthetics:

• Single or double personnel doors
• Truck doors
• Window frames
• Framed openings
• Wall louvres
• Flashings and trims

OTHER PRODUCTS INSULATING PANELS FROM ASTRON BUILDINGS SAS

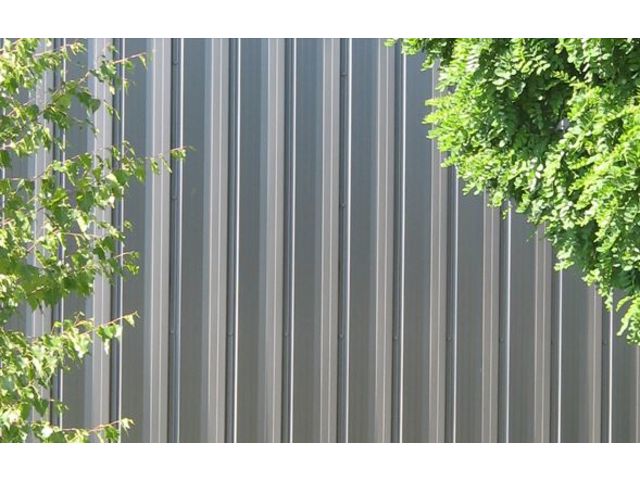

Wall systems : LPA900 - LPD1000

Ask for a quote

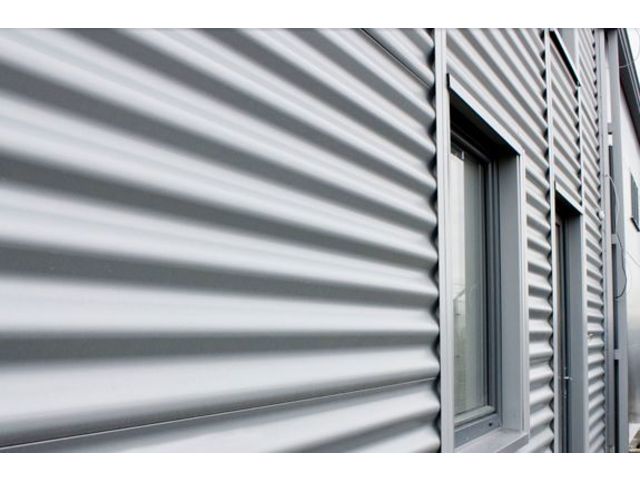

Sinutherm wall system

Ask for a quote

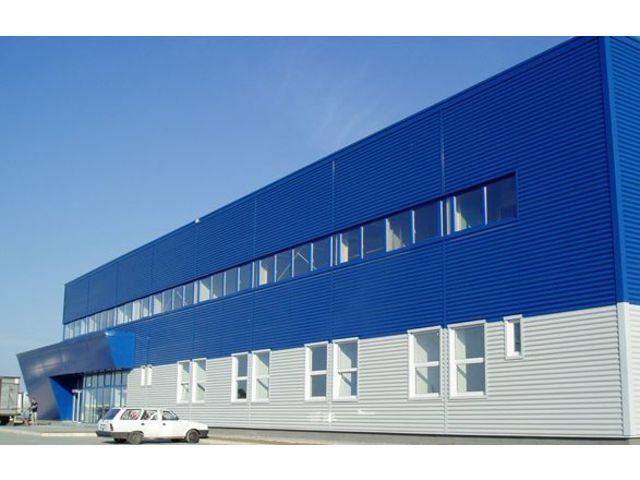

Sinutec wall system
