The measurement principle used in the SCL load cell is based on the deformation of beams to which a compression force is applied. It uses strain gauges arranged to form a Wheatstone bridge for conversion of the force to an electrical signal. The SCL load cell is specially designed to be insensitive to excentrical loads while remaining compact.
APPLICATIONS
Weighbridges, weighing of tanks, silos, etc …
GENERAL

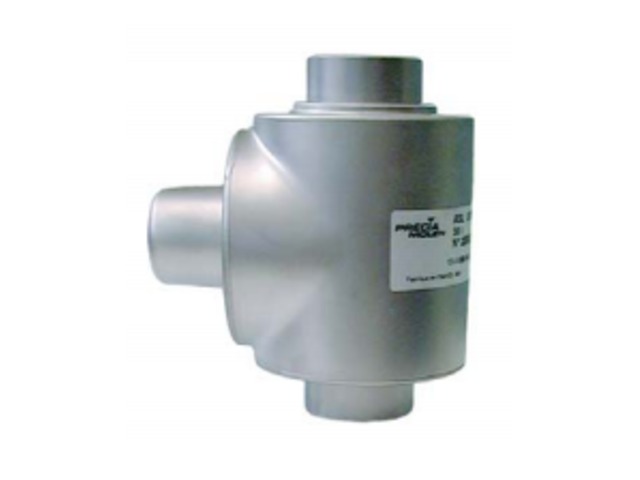

The SCL load cell is a compression load cell using single column technology, and is particularly suitable for weighing applications on weighbridges.
The SCL load cell is made of stainless steel and is compact, and sealed under prolonged immersion (IP 68).
EX OPTIONS
Ex version for use in explosive zone and according to new directive 94/09/CE.
CONFORMITY
Test certificate issued by a notified body in accordance with IOLM recommendation R60.
