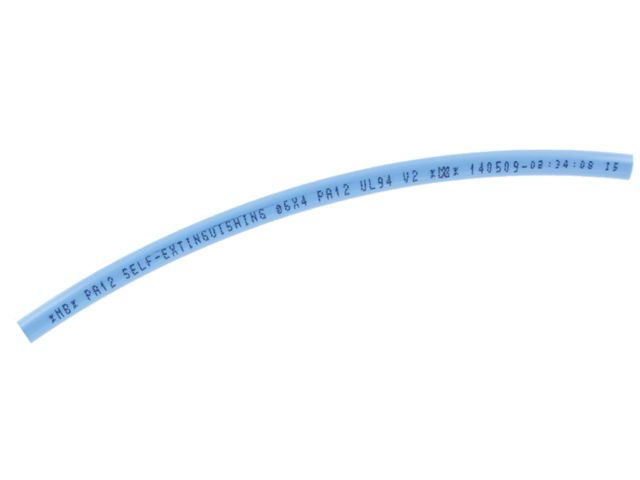

Self-extinguishing polyamide tube for compressed air

Semi-rigid polyamide tubes are designed primarily for the circulation of compressed air. Manufactured from polyamide 12 PHL MB-LONGLIFE or M-Tec in accordance with DIN 73 378 - NFE 49100, these...

“ ✔ Self-extinguishing ✔ Good fire resistance: flame goes out, does not spread ✔ UL94 V2 standard ”

Ask for a quote

Presentation

SENGA's self-extinguishing polyamide tubes are used in compressed air installations, in the welding industry and with pneumatic doors.

Thanks to their self-extinguishing rigid polyamide 12 construction, these tubes are resistant to a working temperature of -30 to +70°C. They also feature fire resistance and an outer diameter tolerance of +/- 0.07 mm.

These self-extinguishing tubes operate at a maximum pressure of 13 to 29 bar at a temperature of 20°C. However, the pressures must be weighted by the coefficients according to the temperatures of use.

Good fire resistance: the flame goes out, does not spread

https://www.senga.fr/en/products-e-shop

Technical features

Outer diameter tolerance: + or - 0.07 mm Materials: polyamide - 12 rigid self-extinguishing Colour: blue Working temperature: between -30 °C and +70 °C Standard UL94 V2
