“ - Compact and lightweight
- Impact strenght
- Compatibility woth compressor oils
- Modular
- Quick and easy to assemble ”
Ask for a quoteReceive DocumentationContact the supplier
The PREVOST PIPING SYSTEM compressed air network links the compressed air source, i.e. the compressors, to the energy distribution points.
New for 2024: Ø160mm available for your compressor rooms. The range adapts to your installation constraints and allows the network to be drilled under pressure.
Quick and easy to install, this compressed air network provides clean, high-quality air at all times, a sealed network with optimised flow, a maximum operating pressure of 16 bar, and perfect supply to workstations.

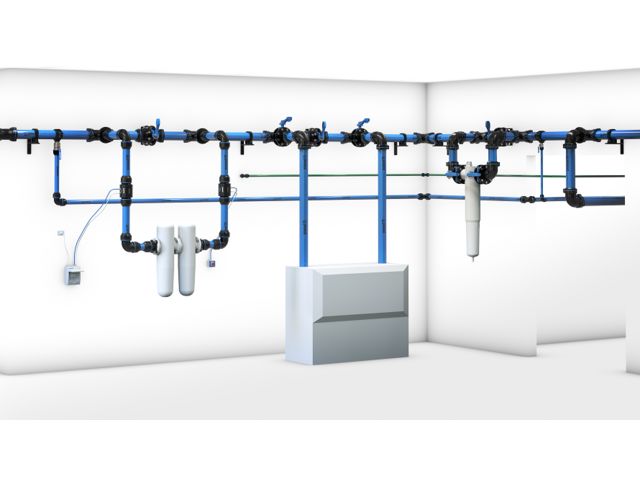

The structure of this compressed air network is made up of aluminium tubes, fixed at a minimum height of 2.50 m from the ground, which form the main loop of the network.
This loop receives smaller diameter tubes called downcomers. The ends of these are positioned at around 1.20 m from the ground.
They form the compressed air distribution points to which various equipment is attached (safety quick-release couplings, filters, flexible hoses, etc.).
This compressed air network has a stainless steel ring with claws that penetrate the aluminium.
It has a lubricated profiled seal for optimum tightness.

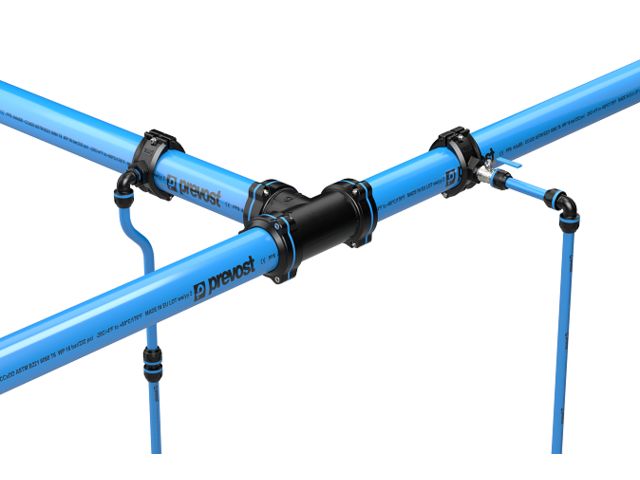

This compressed air network is equipped with tapping flanges to convey dry air to workstations by drawing air from the side of the pipe.
It offers optimised flow rates thanks to its perfect surface finish, low coefficient of friction and maximum flow diameter.
Compactness and lightness, shock resistance and compatibility with compressor oils are just some of the features that set this compressed air network apart.
