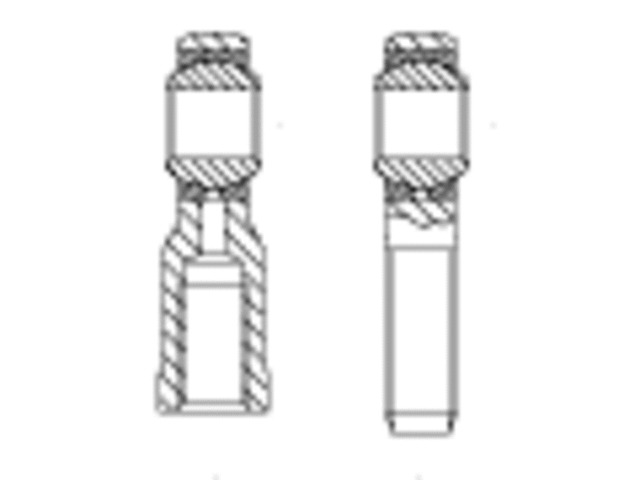

Rod ends dimension series K Standard maintenance required

Inner ring: Antifriction bearing steel, hardened, ground and polished.
Outer ring: Swaged around the inner ring, sliding face made of high-duty bronze. Lubricant is distributed via the lubrication groove in the outer ring.
Housing: Sizes 3 to 12 free-cutting steel, sizes 14 to 50 tempering steel (standardised), all sizes galvanized and chromatised. The spherical bearing is pressed into the housing and caulked at both sides.
Lubrication nipple: Sizes 3 and 5 without lubrication nipple. Sizes 6 to 50 lubrication nipple DIN 3405, shape D. Further lubrication nipple shapes available on request.
Special versions:

- Housing heat-treated, for static load capacity C0 see-V
- Housing made from high-grade tempering steel (heat-treated), for static load capacity C0 see -L
- Housing crack-tested
- Sliding face of inner ring 5 um to 10 um hard chromium plated
- Further versions available on request.
