PV Elite® | Pressure vessel and heat exchanger design software

CAD-Software

“ * Improve Productivity * Save time and increase profitability * Quick and efficient Component Design & Evaluation * Global package with international code rules * Powerful Integration Capabilities * Enhanced Data Accuracy * Cutting-Edge Graphics * Trusted Solutions ”

Ask for a quote

Presentation

PV Elite® is a complete solution for vessel and heat exchanger design, analysis and evaluation.

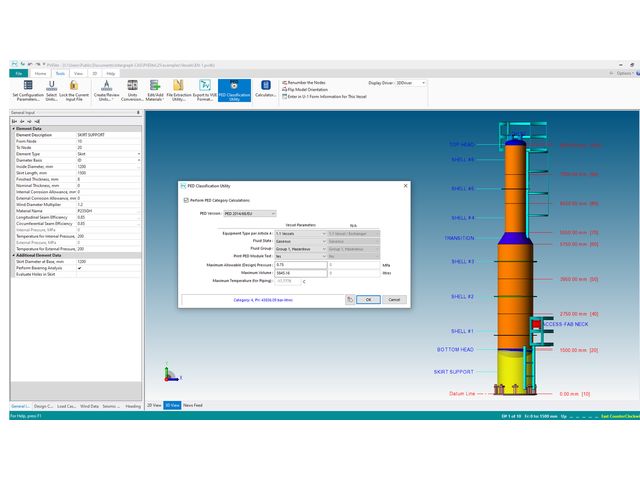

PV Elite considers the whole vessel, addressing all of the wall thickness rules and stress analysis requirements for vertical towers, horizontal vessels and heat exchangers. It also evaluates and re-rates existing vessels, including Fitness for Service analysis.

The program is easy to learn and use, for new and experienced engineers. It streamlines data entry by breaking input into sensible subsets, while analysis may be done in one pass over the entire pressure vessel model or on indiviudual component (such as shells, nozzles, flanges, etc.).

Technical features

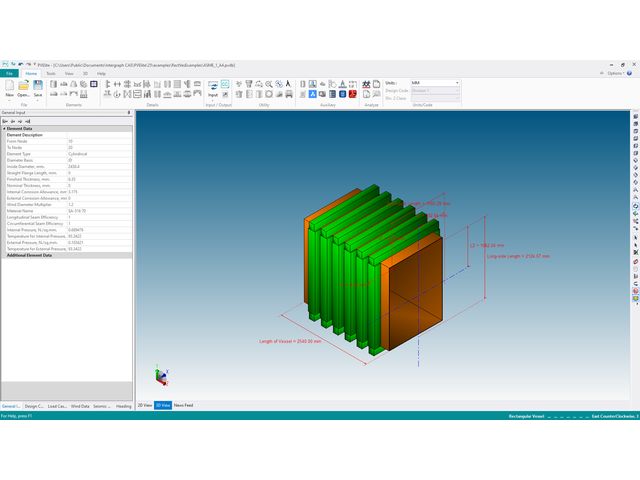

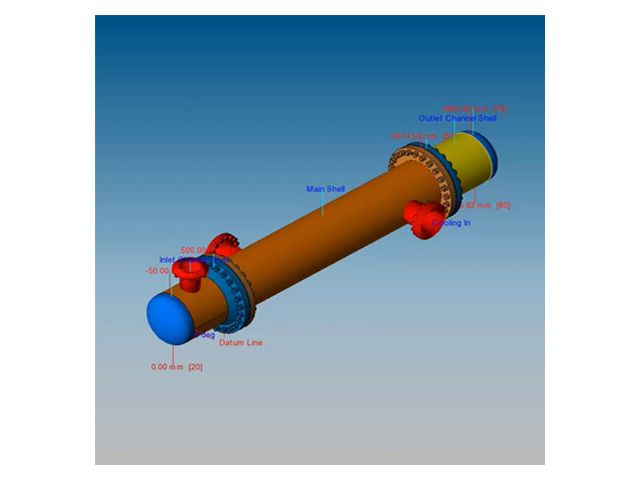

Vessel Design and Analysis Exchanger Design and Analysis Tubesheet Design and Analysis Rectangular and Non-Circular Vessel Analysis Individual Component Analysis Comprehensive Error Checking Saddle, Leg, Lug, Trunnion and Skirt Design International Vessel Codes International Wind Analysis Generation of Retirement Limits and Maximum Allowable Corrosion Allowance

Download the complete technical features

Usage scope

Oil and gas Chemical F&B Pharmaceuticals Power
