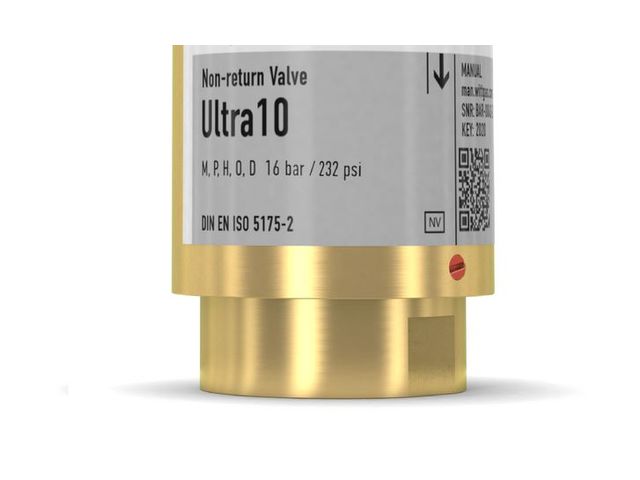

WITT non-return valves for reliable protection against dangerous reverse gas flow. Flow-optimised valve system causes very low pressure drop at minimal noise emission. Every non-return valve 100% tested.
Benefits
-
a spring loaded non-return valve prevents back feeding of gases which could lead to unwanted gas mixtures
-
low pressure drops – using complex valve assembly with low opening pressures (ca. 4 mbar)
-
stainless steel filter (100 μm) in the gas inlet protects the non-return valve against dirt contamination, extending the service life
-
flow-optimised valve system for:
- ultra low pressure drop
- minimal noise emission
-
no leaks – using of a spring loaded valve assembly with elastomer sealing
-
in accordance with DIN EN ISO 5175-2
-
available in brass or stainless steel (ES)
-
diverse applications – useful for many technical gases
-
reduce installation costs – the spring loaded valve is not affected by gravity and may be installed in any orientation
Operation / Usage
-
non-return valves are used to protect equipment and pipelines against dangerous reverse gas flow.
-
Use is possible for applications according to EN 746-2
-
WITT non-return valves may be mounted in any position / orientation
-
the maximum ambient / working temperature is 70 °C / 158 °F
Maintenance
-
annual testing of the non-return valve and body leak tightness is recommended
-
WITT is happy to supply special test equipment
-
non-return valves are only to be serviced by the manufacturer
