WITT FRANCE SARL

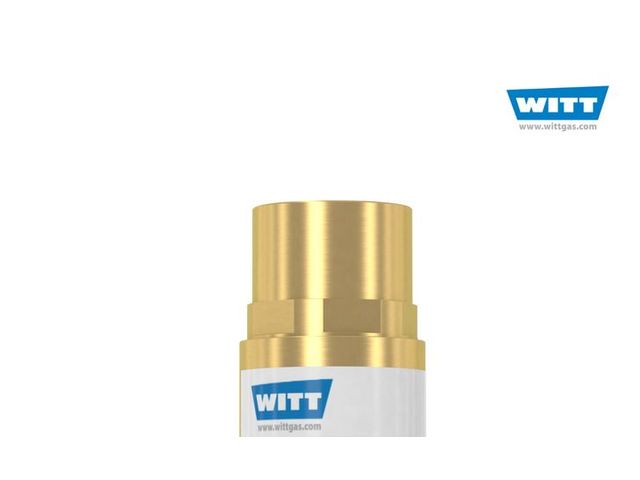

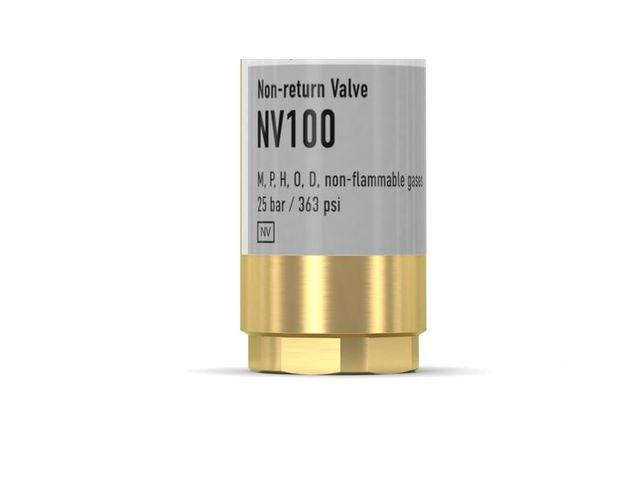

Non-Return Valve NV100

Check valve

Ask for a quote Receive Documentation Contact the supplier

WITT non-return valves for reliable protection against dangerous reverse gas flow.
Every non-return valve 100% tested.

The best non-return valves in the world.

Benefits:

  • a spring-loaded non-return valve prevents a reverse flow of gases, which could lead to unwanted gas mixtures
  • low pressure drops – using complex valve assembly with low opening pressures (approx. 30 mbar)
  • no leaks – using a spring-loaded valve assembly with elastomer sealing
  • diverse applications – useful for many technical gases
  • reduce installation costs – the spring-loaded valve is not affected by gravity and may be installed in any orientation

Operation / Usage:

  • non-return valves are used to protect equipment and pipelines against dangerous reverse gas flow. Use is possible for applications according to EN 746-2
  • WITT non-return valves may be mounted in any position / orientation
  • the maximum ambient / working temperature is 70 °C / 158 °F

Maintenance:

  • annual testing of the non-return valve and body leak tightness is recommended
  • WITT is happy to supply special test equipment
  • non-return valves are only to be serviced by the manufacturer

Download the complete technical features

Hydrogen Applications Glass Industry Thermal Processing
