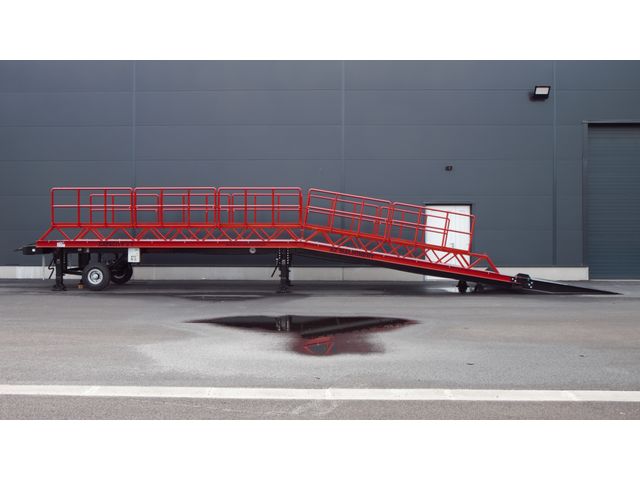

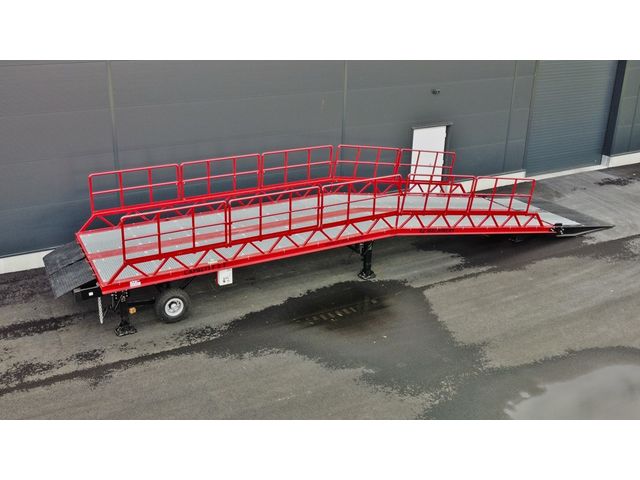

Platform loading ramp

“ Oversized ramp, for all loading and unloading of oversized loads. ”

Ask for a quote

Presentation

XXL model integrating all possible extensions, the AZ RAMP STAR XL LLO model supports all superlatives:

rolling area extended to 260cm
horizontal plane elongated to more than 600cm

This ramp will be your best tool for loading and unloading large and long parts.
Exceeding the width of trailers and containers, you can unload loads of maximum sizes.
Its elongated horizontal plane will allow the part to be unloaded without causing it to angle.
The grounding of the package will then be optional, either via the ramp, or from the ground, by forking the package by the side, the guardrails being removable.
You can enhance this ramp with the many options available.

In its basic version, it includes these advantages:

Fixed and mobile use
simple operation and movement
robust construction
capacity from 8t to 20t
Spare parts in stock

Options available:

Zone of refuge 300mm or 500mm
Side railings 120cm, removable for side loading / unloading operations
Electric Lips
Covered tunnel

From 20.750 €

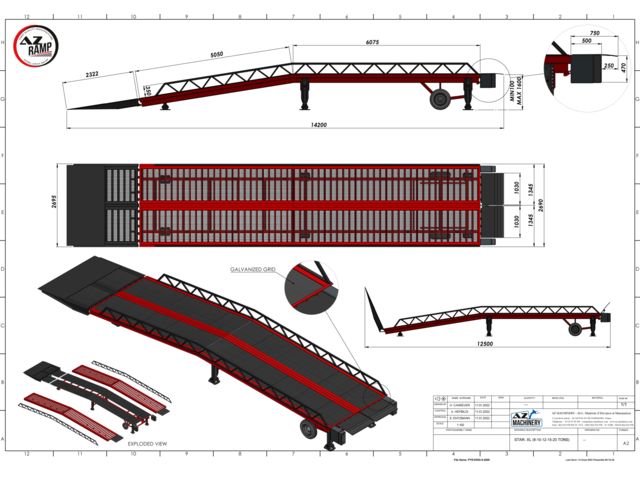

Technical features

Capacity: from 8t to 20t Hydraulic tilting lips, manual or electric use Lockable pivot wheels for ease of movement Pair of crutches 50t capacity for strong anchoring in operating position 35cm wheel stopper or removable 120cm side guardrails. Hydraulically liftable input tray to save space during storage Hot-dip galvanized, serrated, non-slip grating surface. Optional 20-year warranty 2 lashing chains Height adjustable from 100cm to 160cm
