MOBILE DOCK - AZ RAMP FORMATION 2020

MOBILE DOCK - AZ RAMP FORMATION 2020 - AZ MACHINERY

MOBILE DOCK - AZ RAMP FORMATION 2020 - Platform loading ramp

MOBILE DOCK - AZ RAMP FORMATION 2020 - produit présenté par AZ MACHINERY

MOBILE DOCK - AZ RAMP FORMATION 2020 Brand: AZ MACHINERY

Platform loading ramp

“ Mobile and fixed ramp with long-travel leveler for OTCs (CACES Testing Center), respecting R489 regulation or for manufacturers requiring loading/unloading operations for semi-trailers, containers, wagons, etc.. ”

Ask for a quote

Presentation

The AZ RAMP FORMATION 2020 Mobile model has been specially designed to meet the constraints of forklift training centers. This ramp meets the requirements to be met for French CACES Training (Certificate of Aptitude for Safe Driving), according to the new INRS RECO R.489 and ED6059: Driver training, passing of tests for Categories 1 and 3.
Its long horizontal plane and its large clearance leveling dock will also serve manufacturers for fast and secure docking.

It offers in its standard configuration:

Fixed and mobile use
Travel electric leveler -300mm / +280mm
Refuge area 500mm
Side railings 120cm, removable
simple operation and movement
robust construction
capacity from 6t to 20t

>>>> From EXW 15.950 € <<<<<

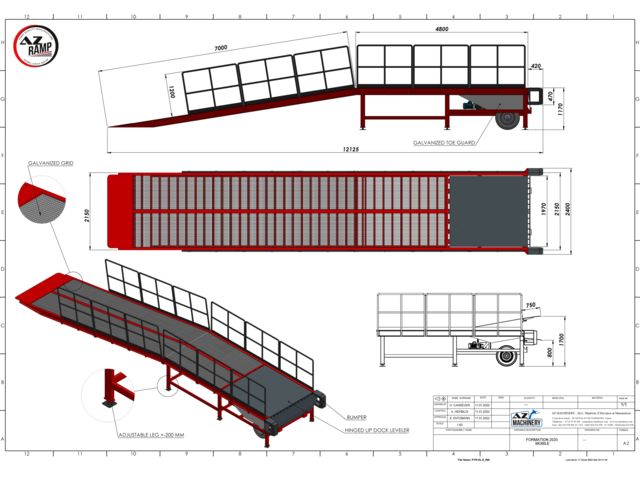

Technical features

Capacity: from 6t to 20t Adjustable platform height Long travel electric leveling Hot-dip galvanized, notched, non-slip grating surface. Indoor / Outdoor use Inflatable tires for more mobility on soft ground 120cm safety guardrails

Download the complete technical features
