MOBILE DOCK - AZ RAMP STAR OTC in STOCK Brand: AZ MACHINERY

Platform loading ramp

“ Standard capacities available in stock! Mobile ramp incorporating all INRS requirements for use in training centers, OTC (CACES Testing Center), complying with recommendations R485 and R489 Mobile and fixed ramp for loading semi-trailers, containers, wagons or ensuring ground/quay connections. ”

Ask for a quote

Presentation

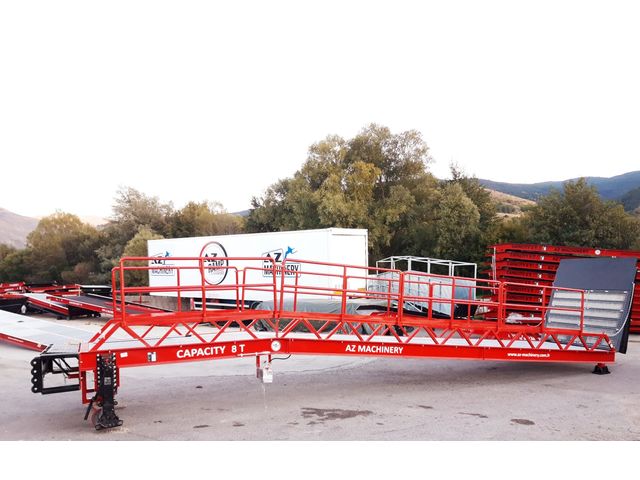

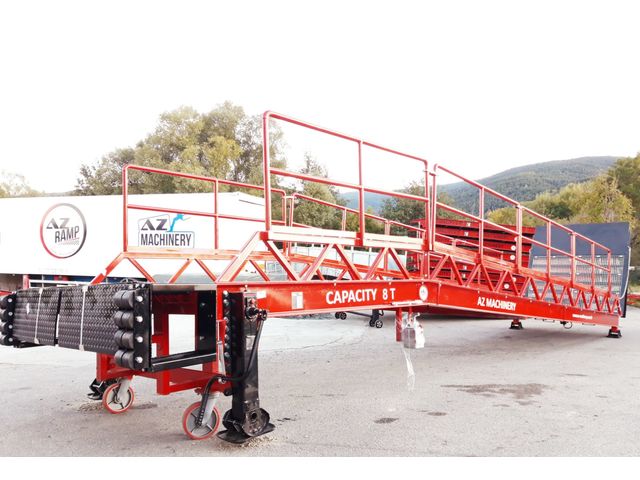

Evolution of our AZ RAMP Star mobile ramp model, the AZ RAMP STAR OTC ramp offers an elongated inclined plane to obtain a gentle slope of 10%.

It is suitable for use with:

Ride-on pallet truck (R489 Cat 1A)
Ride-on stacker (R489 Cat 1B)
Walk-Behind Stacker (R485 Cat 1)
Walk-Behind Stacker (R485 Cat 2)
Reach Truck (R489 Cat 5)
Front mounted forklift (R489 Cat 3)
Front end forklift (R489 Cat 4)

In its basic version, it includes these advantages:

Fixed and mobile use
Refuge area 500mm
Side railings 120cm, removable for side loading / unloading operations
simple operation and movement
robust construction
capacity from 8t to 20t
available from stock for standard capacities
Spare parts in stock

In options:

Fork sleeves for handling with a single forklift

>>>> From EXW 15.750 € <<<<<

Technical features

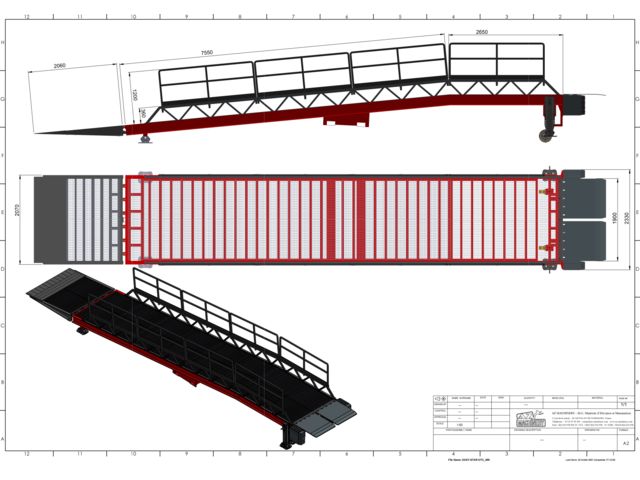

Capacity: from 8t to 20t Height adjustable from 100cm to 160cm Hydraulic tilting lips or mini-leveler Manual or electric use Lockable pivot wheels for ease of movement Pair of crutches 50t capacity for strong anchoring in operating position Galvanized steel mesh running surface Safety guardrails Hydraulically liftable input tray to save space during storage 2 lashing chains

Download the complete technical features
