Platform loading ramp

“ Standard capacities available from stock ! ”

Ask for a quote

Presentation

The flagship of our industry, the AZ RAMP STAR model integrates all of our know-how and responds with its flexibility to almost all situations.

In its basic version, it includes these advantages:

fixed and mobile use
simple operation and movement
sturdy construction
capacity from 8t to 20t
available in stock for standard capacities
spare parts in stock

It has been designed to integrate a large number of options for the particularities of each application.

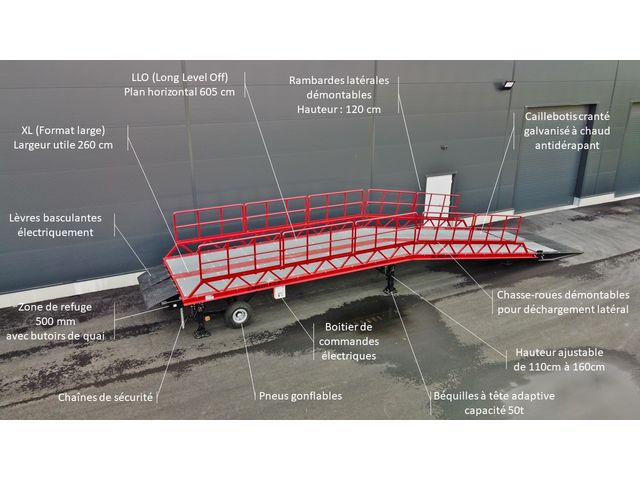

Options available in stock:

Refuge area 300mm or 500mm
Side rails 120cm, removable for side loading / unloading operations
Electric lips

Options available to order:

Extended horizontal plane (LLO) at 525cm for long length loading / unloading operations
Useful width XL enlarged to 259cm
LLO and XL options can be combined
Covered tunnel for user protection

>>>>> From € 12,950 ex works.<<<<<

Refer to the AZ RAMP STAR OTC version for additional:

10m slope - 10%
Docking by manual leveler
Refuge area included
guardrails included

Technical features

Capacity: from 8t to 20t Hydraulic tilting lips, manual or electric use Lockable pivot wheels for ease of movement Pair of crutches 50t capacity for strong anchoring in operating position 35cm wheel stopper or removable 120cm side guardrails. Hydraulically liftable input tray to save space during storage Hot-dip galvanized, serrated, non-slip grating surface. Optional 20-year warranty 2 lashing chains Height adjustable from 100cm to 160cm

Download the complete technical features
