Medium and high temperature hose for temperatures up to +300°C | Master-Clip CAR

Medium and high temperature hose for temperatures up to +300°C | Master-Clip CAR - Bertrand COUTELLIER

Medium and high temperature hose for temperatures up to +300°C | Master-Clip CAR - Flexible shell

Medium and high temperature hose for temperatures up to +300°C | Master-Clip CAR

Flexible shell

Ask for a quote

Presentation

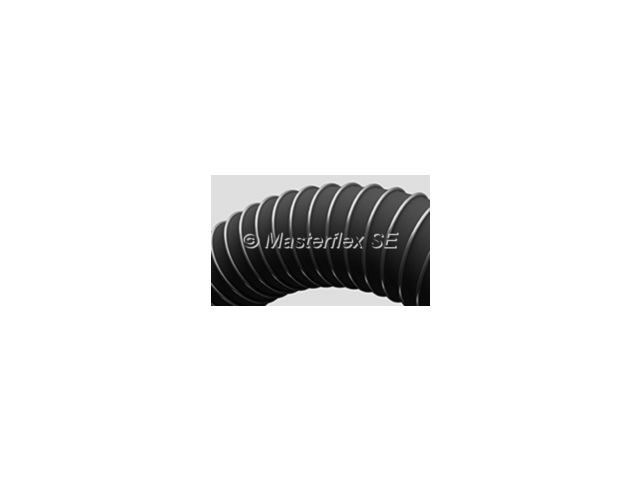

Medium and high temperature hose for temperatures up to +300°C

Material

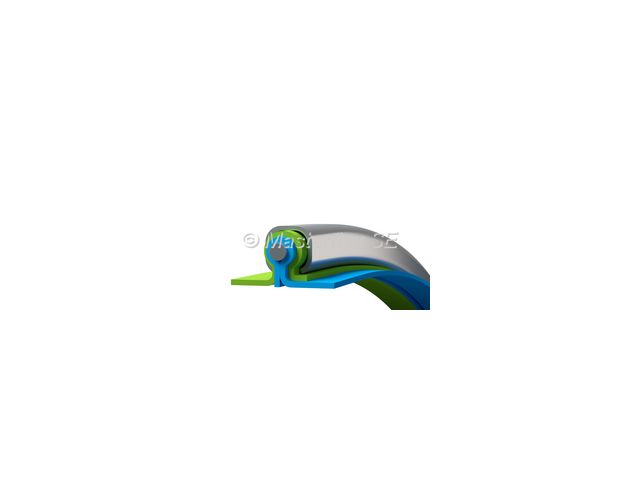

clip profile spiral: hot-dip galvanised steel band
wall: special-coated textile high-temperature fabric

Applications

Suction of engine exhaust fumes up to max.+300 °C acc. to exhaust guidelines and sufficient fresh air intake (approx. 50%)
Machine manufacturing
Automotive manufacturing
Low pressure range
Extractor units
Exhaust gas extraction (esp. diesel engines)
Hot air
Smoke extractors
Defence systems
Aircraft manufacturing

Properties

hardly inflammable
very good temperature resistance
outer chafing protection spiral
primarily suitable as exhaust hose
vibration-proof
withstands high mechanical loads
high tension-proof connection of wall-lining and spiral via special clamp mechanism
highly flexible
extremely compressable to approx. 1:6
smallest bending radii
abrasion-resistant
extremely lightweight

Temperature Range

from -60°C to +300 °C (Exhaust temperatures) with appropriate use if exhaust regulators and sufficient air supply (approx. 50% at the maximum given temperature)
peaks to +350°C*
