Medium- and high temperature hose for temperatures up to +650°C | Master-Clip HT 650

Medium- and high temperature hose for temperatures up to +650°C | Master-Clip HT 650 - Bertrand COUTELLIER

Medium- and high temperature hose for temperatures up to +650°C | Master-Clip HT 650 - Flexible shell

Medium- and high temperature hose for temperatures up to +650°C | Master-Clip HT 650

Flexible shell

Ask for a quote

Presentation

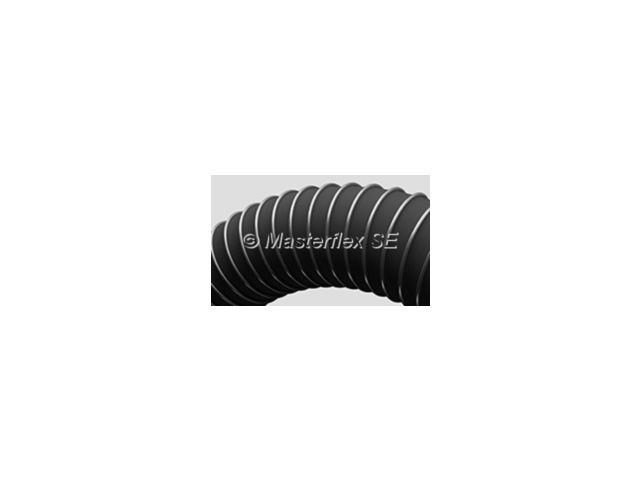

Medium- and high temperature hose for temperatures up to +650°C Master-Clip HT 650

Material

clip profile spiral: hot-dip galvanised steel band
wall: double-layered, inner and outer layers with special-coated high-temperature fabric reinforced with integrated VA wire

Applications

Oven manufacturing
Exhaust gas extraction for high-performance engine test-benches in the automotive industry
Automotive and aircraft industry
Shipbuilding industry
Infrared drying units
Heat protection
Mining and steel industry
Machine manufacturing
Smoke extractors

Properties

very good temperature resistance
outer chafing protection spiral
small bending radius
axial compressable
flame-resistant
withstands high mechanical loads

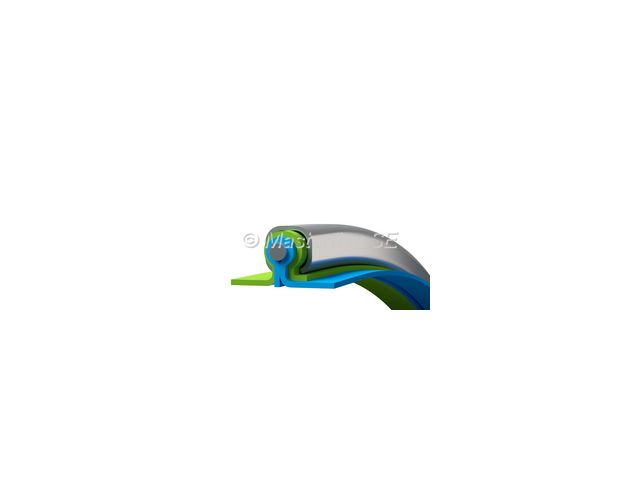

high tension-proof connection of wall-lining and spiral via special clamp mechanism
increased vibration resistance via integrated reinforecement components
silicone-free
flexible
limited suitability for long-term kink movements
good vacuum resistance

Temperature Range

from -20°C till +650°C (exhaust temperature) with appropriate use of exhaust regulators and sufficient air supply (approx. 50% at the maximum given temperature)
peaks to +750°C
