Exhaust gas hose for exhaust gas temperatures up to +450°C, two layers | Master-Clip HT 450

Exhaust gas hose for exhaust gas temperatures up to +450°C, two layers | Master-Clip HT 450 - Bertrand COUTELLIER

Exhaust gas hose for exhaust gas temperatures up to +450°C, two layers | Master-Clip HT 450 - Flexible shell

Exhaust gas hose for exhaust gas temperatures up to +450°C, two layers | Master-Clip HT 450

Flexible shell

Ask for a quote

Presentation

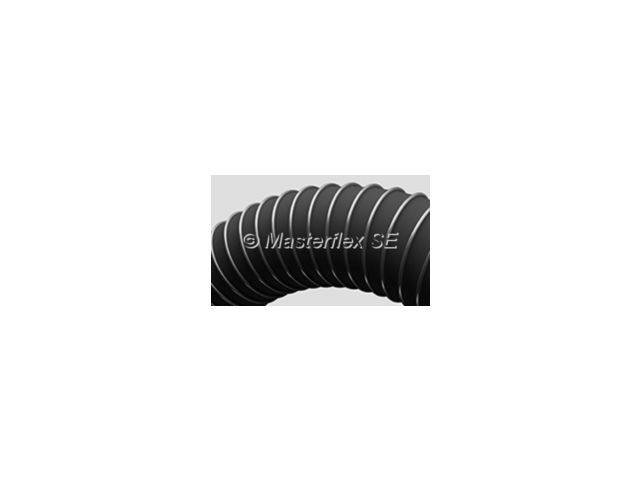

Exhaust gas hose for exhaust gas temperatures up to +450°C, two layers

Material

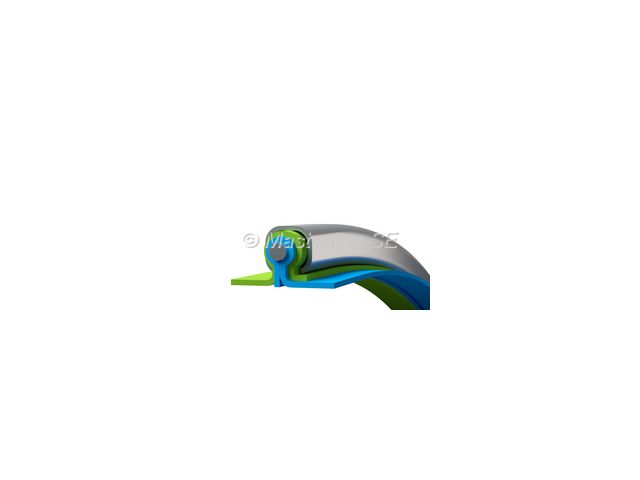

clip profile spiral: hot-dip galvanised steel band
wall: double-layered, inner layer with heat resistant impregnated glass fabric and outer layer with special-coated high-temperature fabric reinforced with integrated VA wire

Applications

Diesel engine test-benches with higher extraction performance
Hot air conveyance
Engine manufacturing
Exhaust gas extraction
Machine manufacturing
Automotive manufacturing
Low pressure range
Smoke extractors
Defence systems
Aircraft manufacturing

Properties

hardly inflammable
very good temperature resistance
outer chafing protection spiral
small bending radius
primarily suitable as exhaust hose
withstands high mechanical loads
super lightweight
high tension-proof connection of wall-lining and spiral via special clamp mechanism
abrasion-resistant
increased vacuum resistance via integrated reinforecement components
extremely flexible

Temperature Range

peaks to +500°C
from -20°C till +450°C (exhaust temperature) with appropriate use of exhaust regulators and sufficient air supply (approx. 50% at the maximum given temperature)
