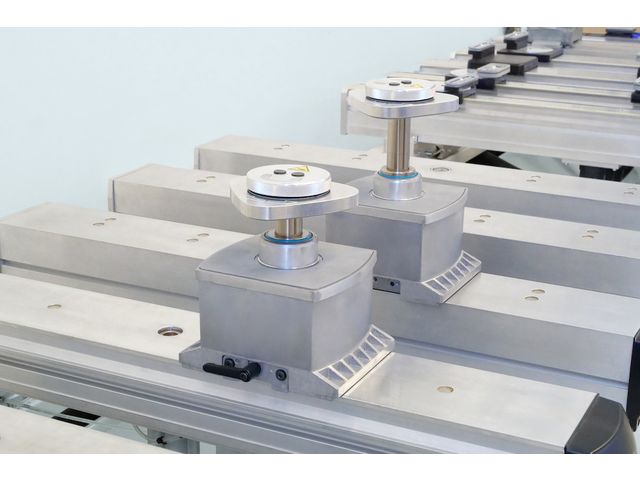

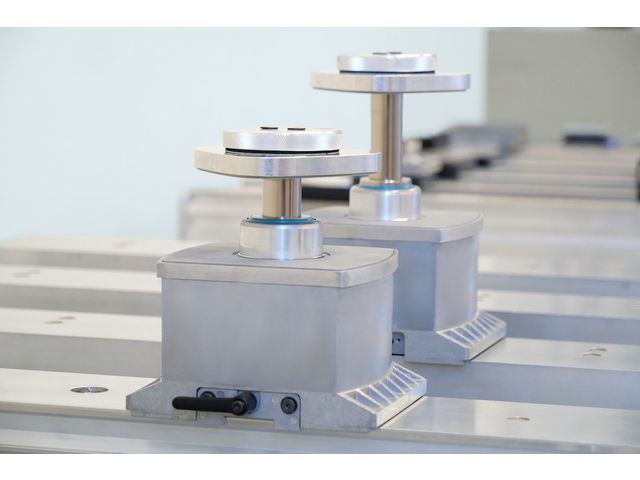

Mechanical clamping system for CNC machining centers with console table (two-circuit system).
Particularly suitable for narrow and curved workpieces such as frame parts and window profiles.
For set-up, the clamp is fixed to the console with the first vacuum circuit and optionally also mechanically clamped; the clamping height is adapted to the workpiece with the tool-free quick adjustment.

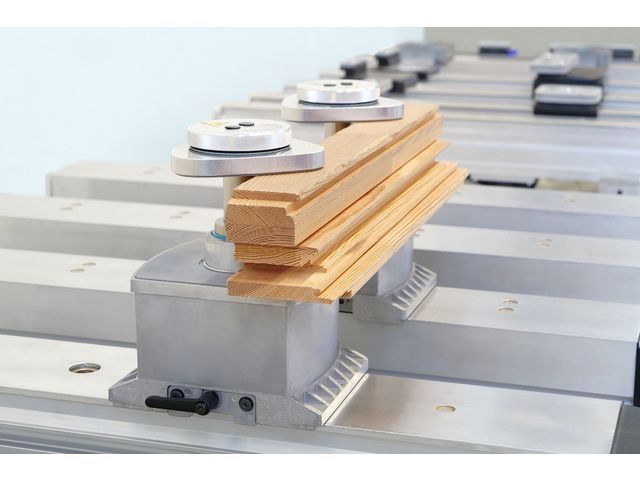

Clamping of the workpiece by activating the second vacuum circuit on the machine table.
