Compact Terminal SCTSi IO-Link

Peripheral equipment for machines

Ask for a quote

Presentation

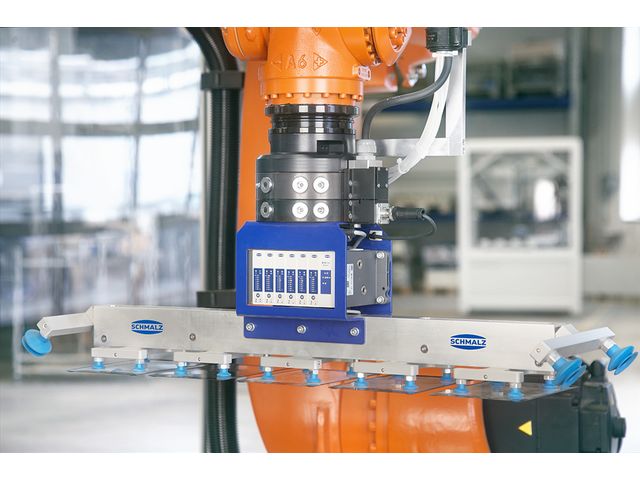

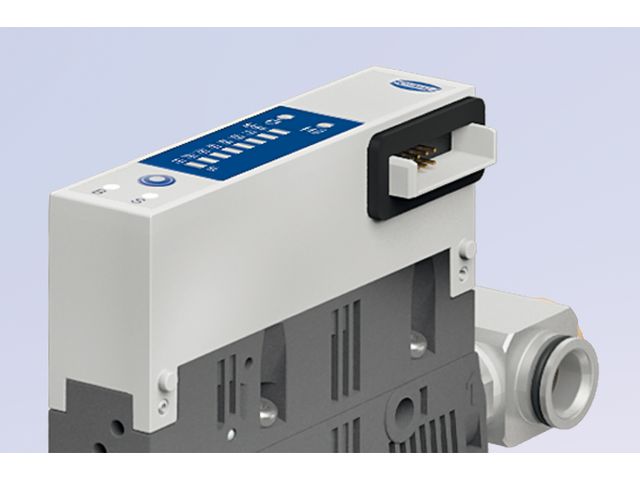

Variety, optimization of production processes, and continuous energy and process control are the challenges of the future. In order to meet these demands, powerful, flexible and energy-efficient vacuum systems are required. The answer is our Compact Terminal SCTSi IO-Link, a compact unit of several vacuum generators for simultaneously and independently handling different parts with a single vacuum system.

Lean :

Central compressed air and power supply for up to 16 ejectors with just one connection each
Compact design and low weight make it suitable for a wide range of applications

Networked :

Can be integrated in a wide range of field-bus systems
Process and device parameters can be easily configured via IO-Link or NFC

Modular :

Modular design means various vacuum circuits can be installed to handle different parts with ease
Each ejector can be selected based on nozzle size, NO, NC or nozzle type

Intelligent :

All vacuum circuits can be separately controlled

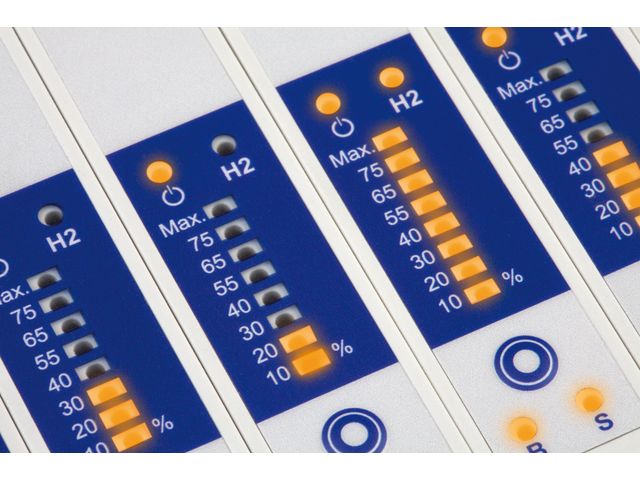

Process transparency, energy consumption control and a variety of diagnostic functions for use in intelligent factories
