MCR plus tribology cells : Tribometer

Viscosimeters, Rheometers

“ Your key to accuracy - the motor technology 25 years of experience in one motor - you only get this asset with tribometers from Anton Paar. The combination of the EC motor (Permanent Magnet Synchronous Motor) using a high-precision air bearing with active thermal management, integrated normal force sensor, and a high-resolution optical encoder, for example, allows for most sensitive and therefore most precise movements. Step-by-step software The intuitive software helps you find the test template you need, customize tests and analysis definitions, export your data, and generate reports. You are guided through your first tribological measurements with designed but individually adaptable templates, including integrated videos and pictures for extra support. Different accounts can be created for each operator working in the lab. Contact Condition Control Sample holders and measuring setups are available to customize your MCR tribometer to achieve significant and representative results for each measurement. Benefit from developments in close collaboration with research and industry partners. Measuring setups for both model tribosystems as well as components, e.g. bearings, and custom-tailored solutions are available to meet your specific needs. Test dry and lubricated systems. Even small quantities of lubricants can be tested effectively. Test point and flat contacts by merely exchanging a sample holder. Furthermore, options for optical and electrical investigations may be added. ”

Ask for a quote

Presentation

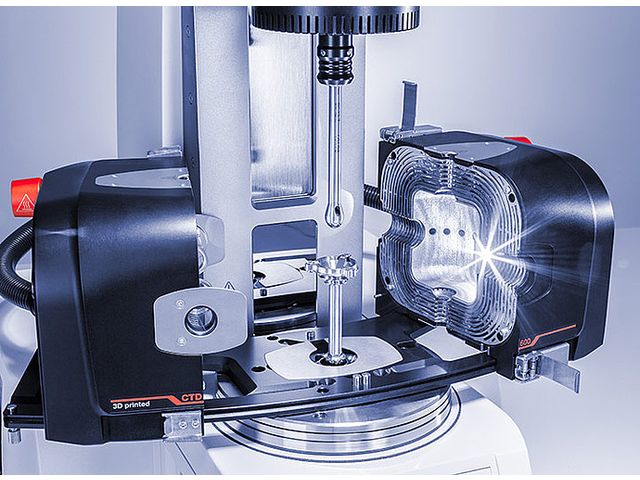

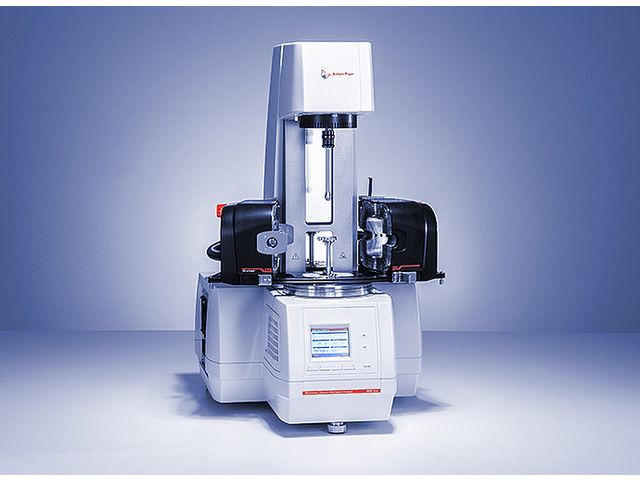

Enjoy the precise motion and force control of MCR tribometers for your tribological measurements. Use a range of accessories designed to work at their best with the MCR Evolution series.

The systems' user-friendly application software enables flexible test programming in rotation and oscillation for all accessories, featuring all tribological parameters and pre-defined measuring templates.

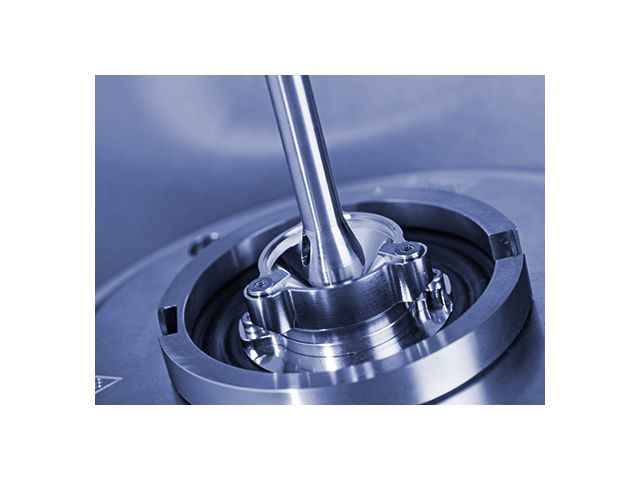

You can use this unique setup to acquire extended Stribeck curves, static friction, limiting friction (including break-away torque) and to apply specific motion profiles combined with normal force and temperature control. This allows for the characterization of a broad range of applications from the characterization of lubricants, biomaterials, polymers to food and beverages. You can also run component tests at model scale for bearings or the like.

For extended Stribeck curves, static friction, limiting friction (including break-away torque)
Test both dry and lubricated systems
Apply rotation or oscillation, control temperature and ormal force

Technical features

Temperature Range : -40 °C to +200 °C Relative Humidity Level : 5 % to 95 % Normal Force Range : 1 N to 50 N Speed Range : 10⁻⁶ rpm to 3000 rpm Sliding Speed Range : 10⁻⁸ m/s to 3.3 m/s Torque Range *) : 1 nNm to 300 mNm
