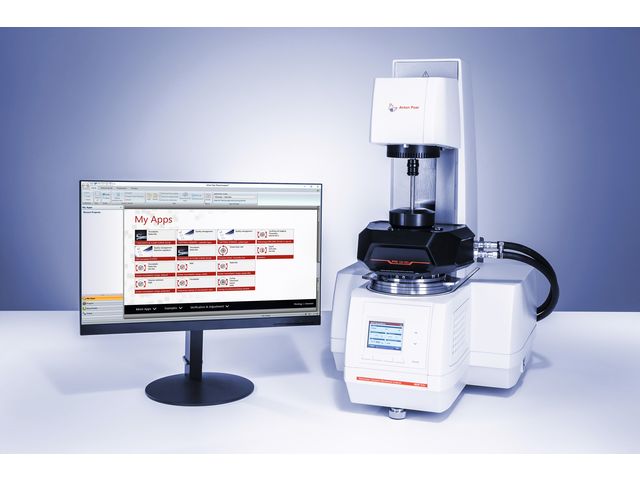

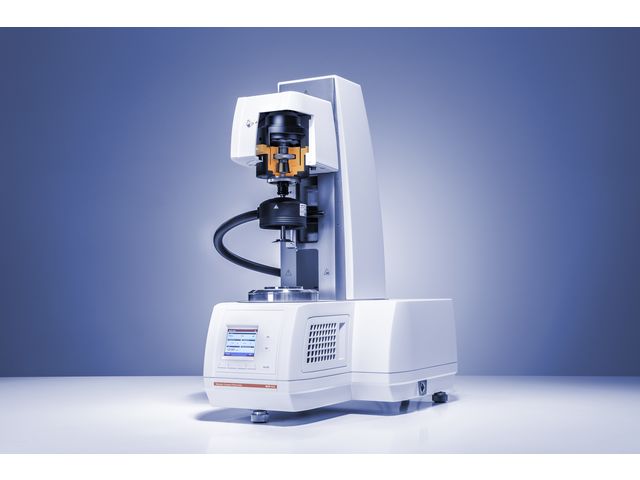

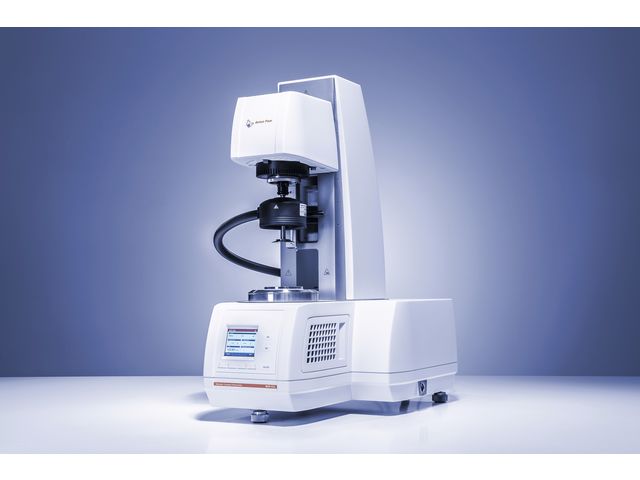

MCR 102e/302e/502e : Modular Compact Rheometer

Viscosimeters, Rheometers

“ The benefits of the new MCR Evolution series - The fatest one-hand coupling and decoupling of measuring geometries in just one second - even at extreme temperatures : Novel quick-connect mechanism -Precisely measure even low-viscosity samples with our entry-budget model : higher sensitivity - Stable results even for long-term measurements with low torque : improved thermal management within the EC motor starting from MCR 302e - More space for sample handling and exchange of accessories : extended working height starting from MCR 302e - The only device on the market with a trimming miror for a 360° view of the sample with no blind spots, which avoids sample preparation errors and leads to highly reproducible results - Detecttion of any sample behavior change even at the shortest time scales : reproducible duration of each measuring point down to 1 ms - Full pharma compliance : the best pharma package for the RheoCompass software Takes work off your hands: Unique motor and sample-adaptive controller technology The MCR Evo series builds on 25 years of research, development, and constant improvement. This results in technology which pushes the boundaries of rheometry. The combination of the EC motor (Permanent Magnet Synchronous Motor) using a high-precision air bearing with active thermal management, integrated normal force sensor, and a high-resolution optical encoder, for example, allows rheological measurements at the lowest torques ever. The unique sample-adaptive controllers for measurement in rotation (TruRate™) and oscillation (TruStrain™) work for 99 % of all samples and measurements “out of the box” with the perfect combination of speed and accuracy – save time and nerves and even get better data at the same time! Excellence in every component and every work step After decades in the field, Anton Paar understands and anticipates what is required for outstanding rheological analysis. With this knowledge in mind, we designed every component and created every handling step to be part of a smooth and intelligent whole: - The patented Toolmaster™ technology automatically recognizes measuring systems - One-hand exchange of measuring systems due to the QuickConnect coupling - T-Ready™ detects sample temperature equilibration in real-time - The TruGap™ feature detects the real measuring gap - The trimming mirror gives you a 360° view of the sample and thus supports high measurement repeatability. And many more Choose from more than 100 test templates, set report filters, and use remote control The intuitive RheoCompass software offers predefined as well as customized test templates and analysis definitions. Furthermore, it is possible to export your rheological data and generate reports. Data can easily be filtered by e.g. year, batch number, or operator, and displayed within seconds. Due to the Ethernet connection, the rheometer can be remote-controlled from anywhere via the company network. Gap setting, adjustments, and tests can also be started directly from the MCR rheometer, minimizing annoying switches between the computer and the device, e.g. during sample preparation. Unlimited possibilities: add one of more than 200 accessories Whatever your rheological applications are and will be in the future – Anton Paar rheometers are quickly and easily adapted to meet your needs. Their flexibility makes them the most cited instruments in scientific publications on rheological investigations. An extensive range of application-specific accessories is available to extend the rheometer’s capabilities, including DMA measurements, extensional rheology, rheo-optics (e.g. microscopy and Raman spectroscopy), magneto- and electrorheology, dielectric spectroscopy, interfacial rheology, UV curing, pressure- and humidity-dependent rheology, tribology, and many more. A wide range of temperature accessories allow you to apply and control temperatures from -160 °C to 1000 °C. Your partner for special applications and customized solutions With the special model MCR 502e Power you have the highest available torque of 300 mNm and highest available normal force of 70 N at your fingertips. This means you can perform fatigue- and heating-controlled stress tests on asphalt mixtures, for example. Based on decades of experience in rheometry and rheology, Anton Paar can make nearly everything possible. We develop and supply customized products for all kinds of specific applications. With our in-house production in Austria and a dedicated R&D team just next door, we develop and supply customized products for all kinds of specific applications. Don’t hesitate to contact us in order to discuss your requirements and to find a customized solution for your measurement task. ”
Ask for a quote Receive Documentation Contact the supplier

The new MCR Evolution series is the result of consistent thinking and rethinking, of continuous development based on decades of experience and the feedback of more than 10,000 satisfied customers. The combination of innovative and thousandfold field-proven technology with the modular design represents the benchmark in its class. With 200+ accessories the MCR Evolution rheometer series gives you endless possibilities for rheological investigations and material characterization. Experience sophisticated rheological research and advanced QC testing like never before.

MCR 102e :
  • Your entry ticket into the world of QC testing and rheological product development, upgradeable with sample-adaptive controllers
  • EC motor technology based on 25 years of expertise and market leadership with a torque range from 2 nNm to 200 mNm
  • Normal force measurements up to 50 N
MCR 302e:
  • The next evolutionary step of the world's most-sold rheometer for advanced QC testing and rheological research
  • The reference EC motor on the market with a torque range from 0.5 nNm to 230 mNm and integrated active thermal management
  • More space for sample handling and exchange of accessories
MCR 502e Power :
  • The most powerful rheometer model for special applications
  • Unique maximum torque and normal force specifications
  • Active thermal management of motor and bearing for long-term measurements even at high torques

Bearing design : Air, fine-pored carbon Motor design : Electronically Commutated (EC) - Permanent Magnet Synchronous Motor Displacement transducer design : High-resolution optical encoder Normal force measurement design : 360 ° capacitive sensor, non-contacting, fully integrated in bearing
Download the complete technical features
