Fastening bracket for 10mm profiles with fastening hole

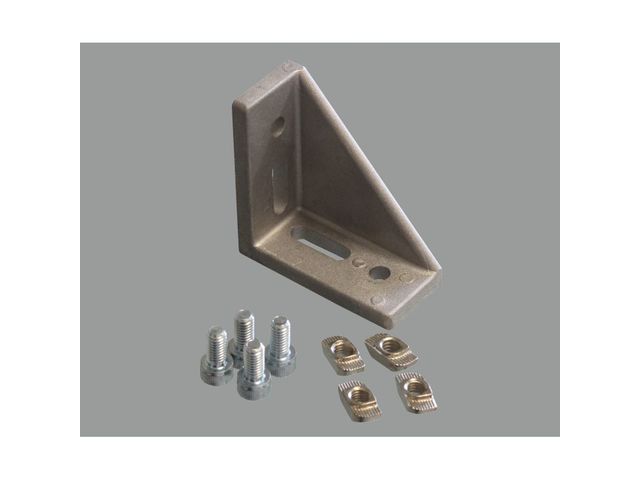

Long Bracket for 8 mm slot 30x30 profile
Long brackets offer better rigidity for heavy loads.
Optional fixings :
- 4 M6 screws
- 4 M6 T-nuts for 8 mm slot

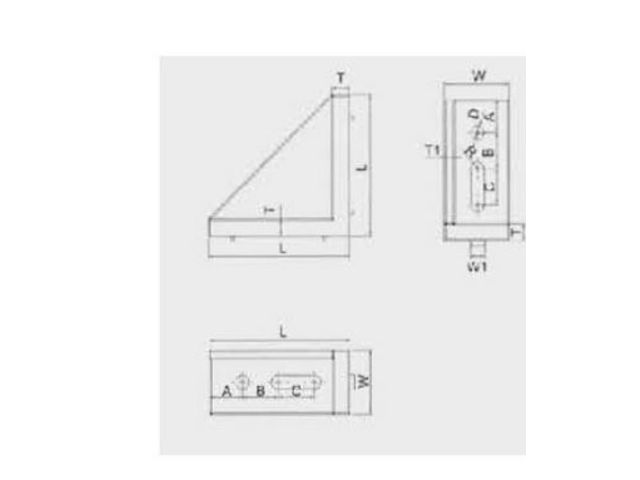

Dimensions in mm (see drawing) :
L = 58
T = 6
T1 = 5
W = 28
W1 = 5.7
A = 15
B = 15
C = 15
D = 6.5
R = 3.25
