Leveling foot for 6 mm slot profile (M6)

Assembly systems and components

Ask for a quote Receive Documentation Contact the supplier

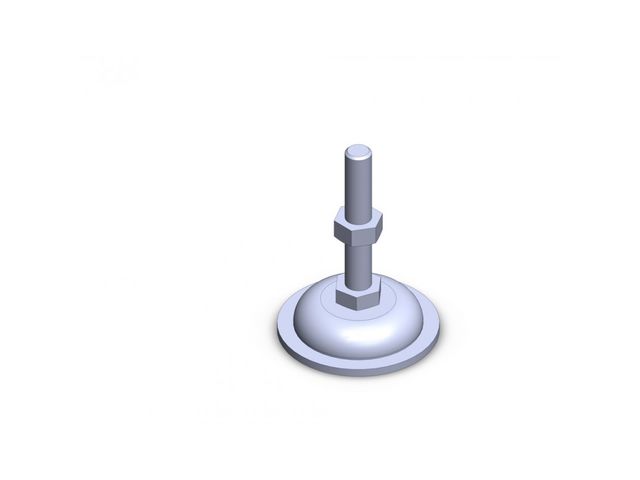

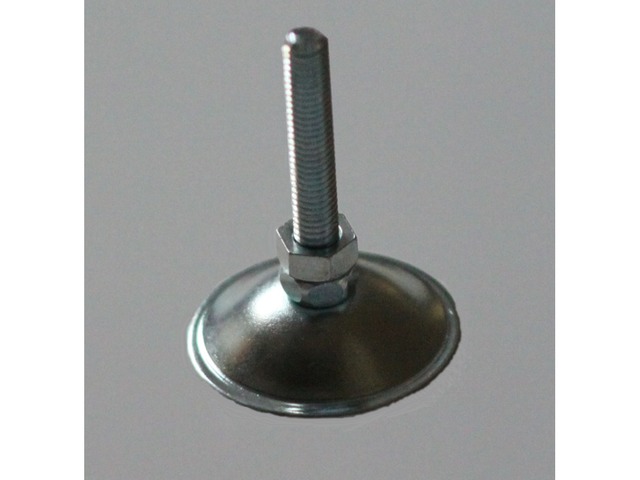

Leveling foot for 6 mm slot profile (M6)

Compatible with 5mm diameter core holes (threading required)

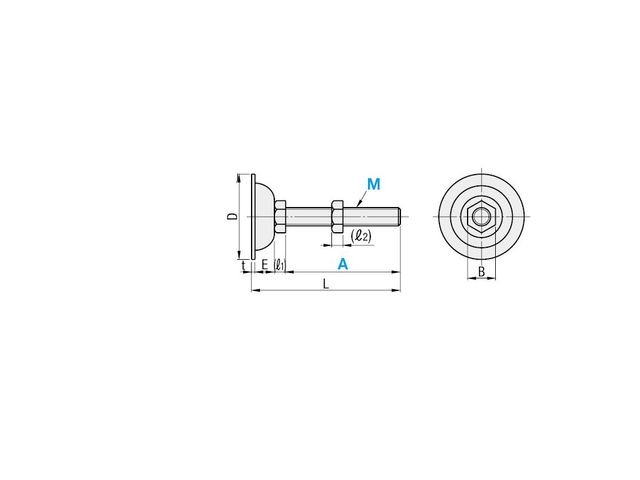

Dimensions in mm (see drawing)

M = M6

A = 40

L = 51

D = 30

E = 5.4

l1 = 4

l2 = 5

B = 10

t = 1.6
