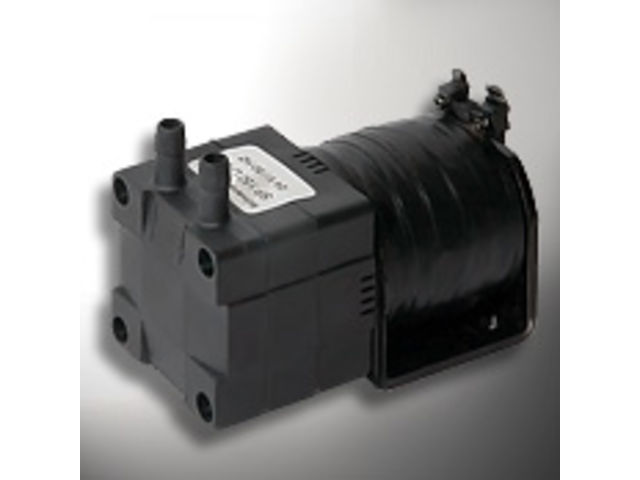

Linear Diaphragm Pumps: LI 150 series

“ • oil free • maintenance free • cost effective • long life time • self-pressure limitation • minimal current consumption • any mounting position possible • all voltages possible • DC-control by electronic • adjustable by electronic ”

Ask for a quote

Presentation

References:

• SP 150 LI-VD

• SP 150 LI-DV

Motor:

• Power source [Vac] : from 12 to 230 in 50Hz, 120 in 60Hz

• Power consumption [W]: 8

Pneumatic performance:

• Free flow [l/min] : from 3.6 to 3.8

• Max. pressure[mbar] : from 164 to 175

• Max. vacuum [mbar] : from -92 to - 95

Linear Diaphragm Pumps: LI

Run by an electronic magnet, these pumps are spared the complexity of a motor driven technology. The linear pumps run completely frictionless. The outcome is an extremely high durability – ideal for continuous operations.

The product range contain a unique patented drive. This allows the linear pumps to reach an otherwise unobtainable pressure with an incredible performance.

Schwarzer Precision Linear Diaphragm Pumps are available as pressure (D) and vacuum-pressure (VD).
