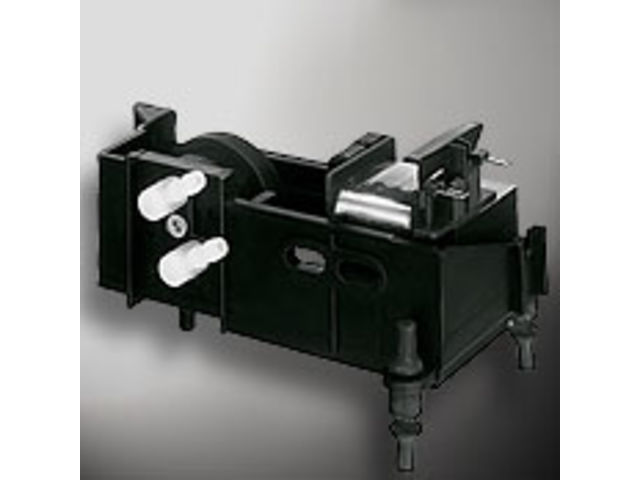

Gas and air pumps: Vibrating Diaphragm Pumps 100/104 series

Gas and air pumps: Vibrating Diaphragm Pumps 100/104 series - PIOT & TIROUFLET - SCHWARZER PRECISION

Gas and air pumps: Vibrating Diaphragm Pumps 100/104 series - Electric membrane pumps

Gas and air pumps: Vibrating Diaphragm Pumps 100/104 series

Electric membrane pumps

“ • oil free • maintenance free • reduced vibrations • very low noise • cost effective • very long life • all voltages possible ”

Ask for a quote

Presentation

References:

• SP 100 SA

• SP 104 SA

Motor:

• Power source [Vdc]: from 12 to 24

• Power source [Vac]: from 12 to 230 in 50Hz, 120 in 60Hz

• Power consumption [W]: 2.5

Pneumatic Performance :

• Free flow [l/min]: from 0.7 to 1.5

• Max. pressure [mbar] : from 140 to 280

• Max. vacuum [mbar] : from -140 to -280

SA: Vibrating Diaphragm Pumps – ideal for continuous operations

Because these pumps are run by an electronic magnet, the complexity of a motor driven technology is unnecessary. The vibrating diaphragm pumps run completely frictionless. The outcome is an extremely high durability – ideal for continuous operations.

Low pressure, high volume performances and a prominent operation smoothness – these characteristics are ideal for stationary analysis machines.

In additon, there is an optimal cost/performance ratio: ideal for mass productions.

For different specific applications, the pumps of the construction series SA are available as:

AC Model – for operations on AC voltage,
DC Model – for operations on DC voltage,
DV Model – to optimize pressure performance,
VD Model – to optimize vacuum performance.
