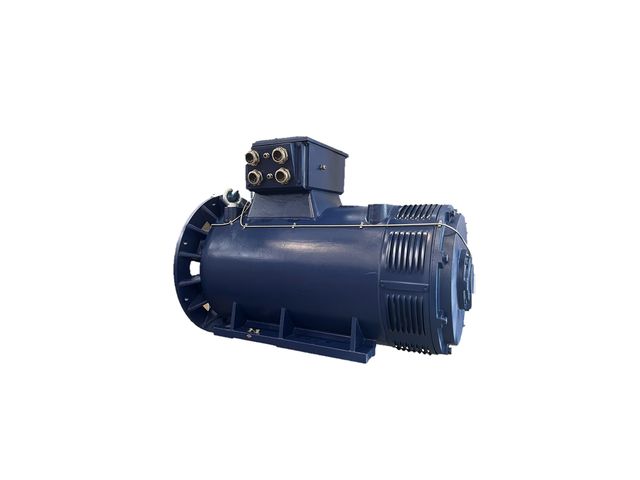

IP23 ventilated open motors (ODP) are an ideal solution for our customers who want compact and smaller motors than IP55 motors. In general, these motors have one less frame size. They are mainly used in clean environments (e.g. manufacturing of plastic bottles for soft drinks, cold compressors for food freezing, ...)
STANDARD OPEN VENTILATED MOTORS (OUR CODE: MOV)
- Three-phase motors with cast iron housing
- IP23 protection
- Insulation class F
- Heating class B
- Legs molded in the casing
- Stored in 230/400V - 400/690V
- Operating in 50/60hz
- Cooling IC01
- Other special voltages or insulation class H on request
- Stored speed : 3000 rpm or 1500 rpm or 1000 rpm
- Efficiency IE3/IE4 (tomorrow IE5)
- Form B3-B5-V1-B35-V15
- Standard motors equipped with PTC sensors for all motors
- Motors are equipped with an isolated bearing for use with a variable speed drive. The PI will eliminate circulating currents in the rotor.
- Provided with two ball bearings
- These motors can be equipped with options such as special probes (e.g. PTO), purge holes, heating resistors, umbrella covers, specific epoxy paints - C3M- C5M, a three-phase forced ventilation code VF cooling IC06.
