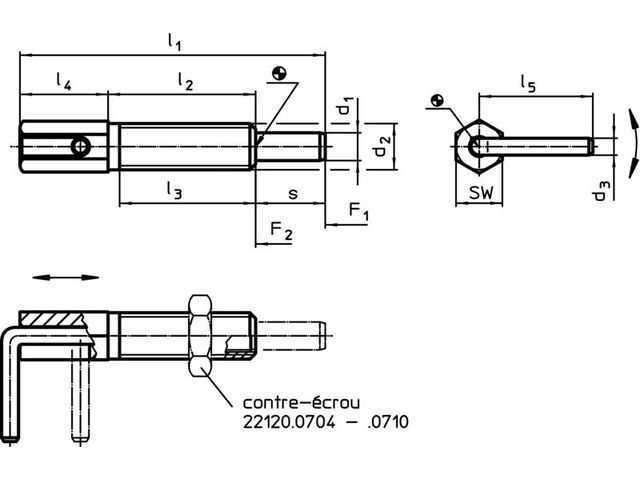

Index Bolts simple finish - EH 22121

Index Bolts simple finish - EH 22121 - HALDER FRANCE SAS

Index Bolts simple finish - EH 22121

Other fixture elements

Ask for a quote

Presentation

Index bolts are used for indexing purposes.

Application limited for cases in which no precise positioning is needed. The high stroke of the pin enables for a variety of applications, e.g. as door bolt.

Simple version in compact design.

Material

Body

Free cutting steel, zinc-plated by galvanization

Locking pin

Steel, zinc-plated by galvanization

Lock nut

Steel, zinc-plated by galvanization

Technical features

Download the complete technical features
