HALDER FRANCE SAS

Spring Plungers with ball and internal hexagon EH 22030

Other fixture elements

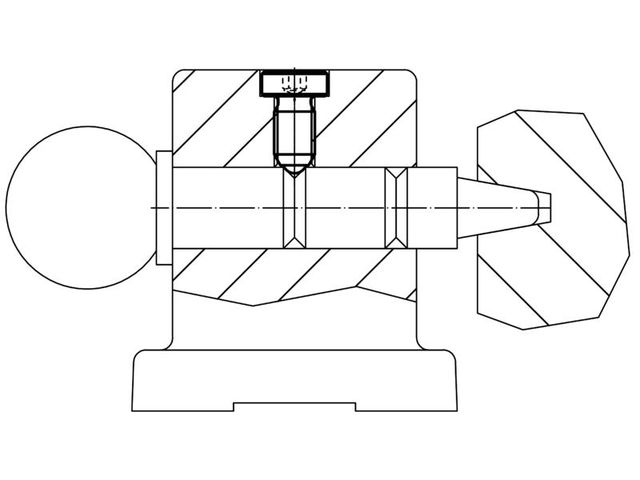

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection. Precise screwing depth due to head. Material Body - Free cutting steel, blackened - Stainless steel...

Ask for a quote Receive Documentation Contact the supplier

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.

Precise screwing depth due to head.

Material

Body

- Free cutting steel, blackened
- Stainless steel 1.4305


Ball

- Ball-bearing steel, hardened
- Stainless steel, hardened

Spring

- Stainless steel

Assembly

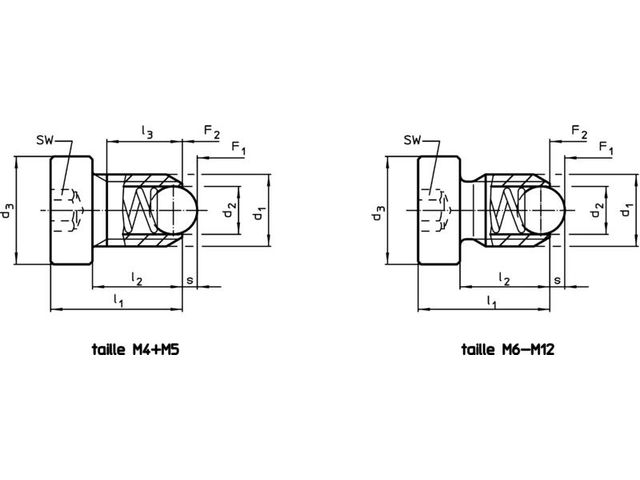

Respect l3 for M 4 / M 5.

Notes

Special types on request.

Spring range and forces are precisely tested.

References

Thread lock on request, please refer to appendix - Technical Data -

Calculation of indexing resistance, see details at the start of the section.

Download the complete technical features
