HALDER FRANCE SAS

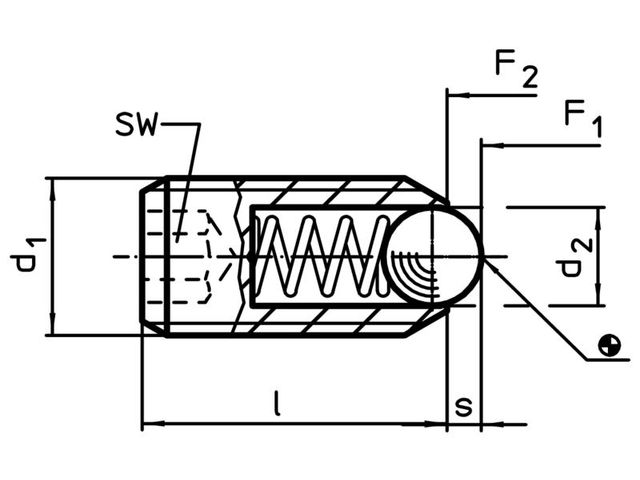

Spring Plungers with pin and internal hexagon EH 22030

Other fixture elements

Ask for a quote Receive Documentation Contact the supplier

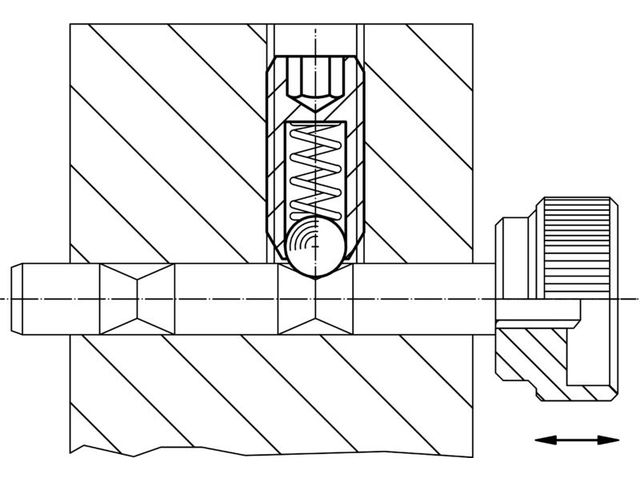

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.

Material

Pin

- Free cutting steel, hardened, blackened
- Stainless steel 1.4305

Body

- Free cutting steel, blackened
- Stainless steel 1.4305

Spring

- Stainless steel

Characteristic

Standard spring load: no marking

Reinforced spring load: marked with two lines

Notes

Special types on request.

Spring range and forces are precisely tested.

References

Thread lock on request, please refer to appendix - Technical Data
