Ideal for Automation, Integration and Robotics: Compact Laser Triangulation Displacement Sensor

Laser position sensors

“ The new, compact optoNCDT 1320 triangulation sensor from sensor specialist Micro-Epsilon offers maximum precision in a minimum of space. Due to its low weight combined with compact size, the optoNCDT 1320 can be easily integrated into restricted installation spaces and is ideally suitable for dynamic applications. Due to their excellent price/performance ratio, the sensors are particularly suitable for high volume applications in machine integration and factory automation. ”
Ask for a quote Receive Documentation Contact the supplier

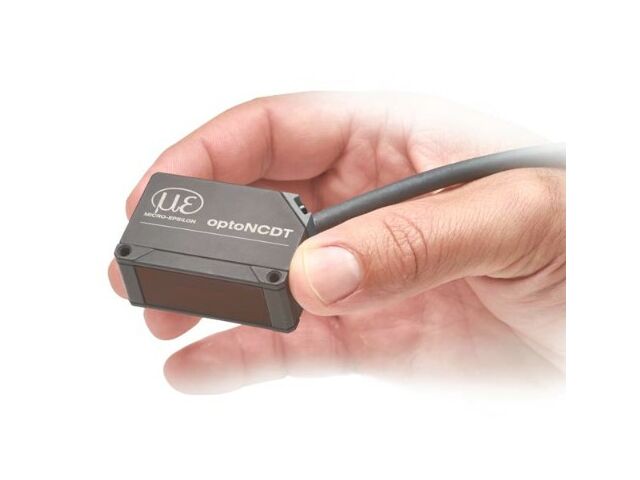

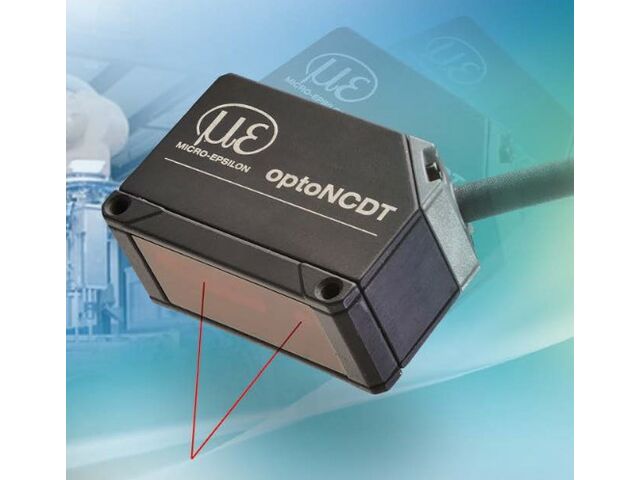

The optoNCDT 1320 is a new laser triangulation sensor with compact size. This series provides the ideal entry-level sensor for precise measurement of displacement, distance and position. The controller is integrated in the housing which considerably simplifies the installation procedure. Due to its extremely compact size, the sensor can also be integrated into restricted installation space. Due to its low weight, the optoNCDT 1320 is ideally suitable for applications where high accelerations occur e.g. on the robot arm or in pick-and-place machines.

The optoNCDT 1320 offers high accuracy and adjustable measuring rates up to 2kHz. The Auto Target Compensation (ATC) provides stable distance signal control regardless of target colour or brightness. Very small objects can be detected reliably due to the small and sharply projected measurement spot size.

A newly defined class of its own
The combination of speed, size, performance and application variety defines a new class of laser sensors. The worldwide unique SMART sensor concept combines an integrated web interface with a compact sensor size. The excellent price/performance ratio enables new areas of use, especially for high volume applications in machine integration and factory automation.

Measuring ranges (mm) 10 | 25 | 50 Linearity from 12µm Repeatability from 1µm Measuring rate 2kHz Compact size with integrated electronics 3m integrated sensor cable with open ends Scalable analog output Trigger input RS422 interface
Download the complete technical features
