Laser sensors for dynamic measurements of displacement, distance and position

Laser position sensors

“ + Unique combination of size, speed and accuracy + Ideal for dynamic and high resolution measurements + Highest ambient light resistance in its class + Advanced Surface Compensation for high speed measurements on changing surfaces + Stable aluminum die-cast housing + New installation system enables repeatable sensor alignment in ideal measuring position ”

Ask for a quote

Presentation

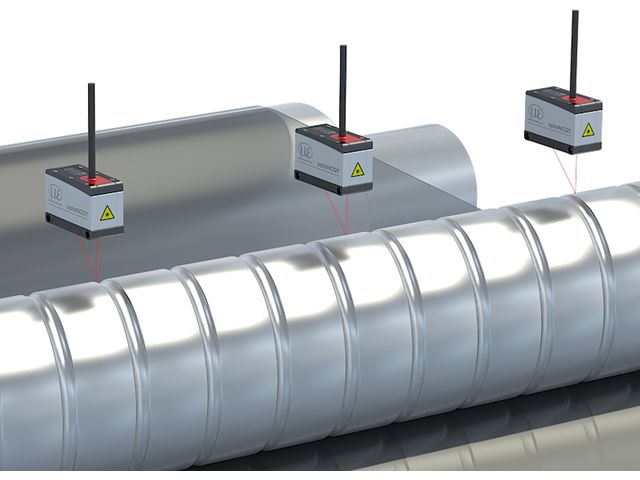

The optoNCDT 1900 laser sensor combines a lightweight, compact design with high precision. This makes it ideally suited to displacement, distance and position measurements in industrial environments, automation and robotics. The innovative laser triangulation sensor is used whenever maximum precision is required with the latest technology. It solves measurement tasks in the fields of automation, car manufacturing, 3D printing and in coordinate measuring machines.

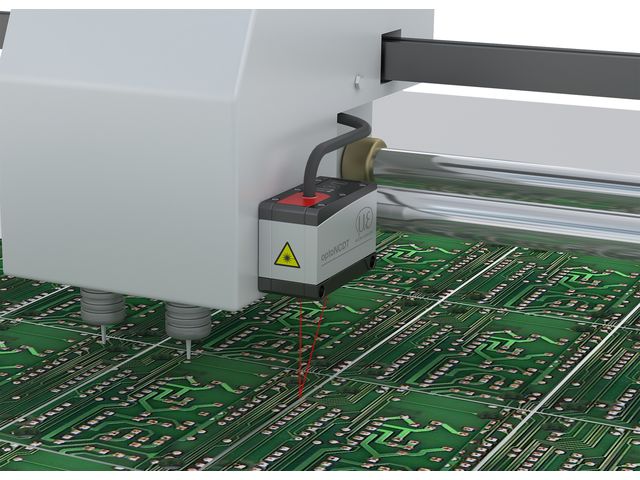

Both shiny metals and different paints ranging from bright to dark and from matt to shiny can be measured reliably. The small light spots allows for the smallest of details to be measured precisely, while the robust design enables installation on processing robots.

The sensors are equipped with an intelligent surface control feature. The Advanced Surface Compensation feature operates with new algorithms and enables stable measurement results even on demanding surfaces. In addition, the sensor is extremely resistant to ambient light and can also be used in strongly illuminated environments. For signal optimization, a two-step measurement value averaging feature is available. This enables a smooth signal at edges and steps.

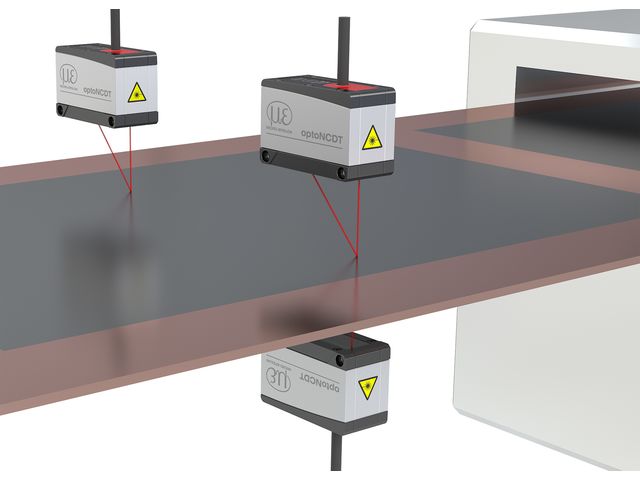

Mounting the sensor using fitting sleeves automatically aligns the sensor in the correct position. This enables both easy sensor replacement and even higher precision in solving measurement tasks. The sensor requires only 70x31x45 mm of space. In particular thickness measurements involving two optoNCDT 1900 sensors reveal the benefits of this mounting system, as the light points can be aligned exactly.

Technical features

Measuring ranges (mm): 2 | 10 | 25 | 50 | 100 | 200 | 500 Linearity from 1 µm Adjustable measuring rate up to 10 kHz Analog and digital outputs Compact size with integrated electronics Advanced Surface Compensation for fast adaption to changing surfaces Predefined and individual presets in web interface Integrated EtherCAT interface
