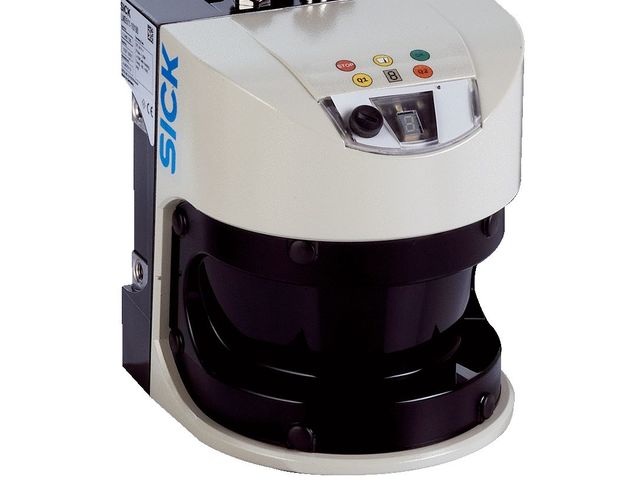

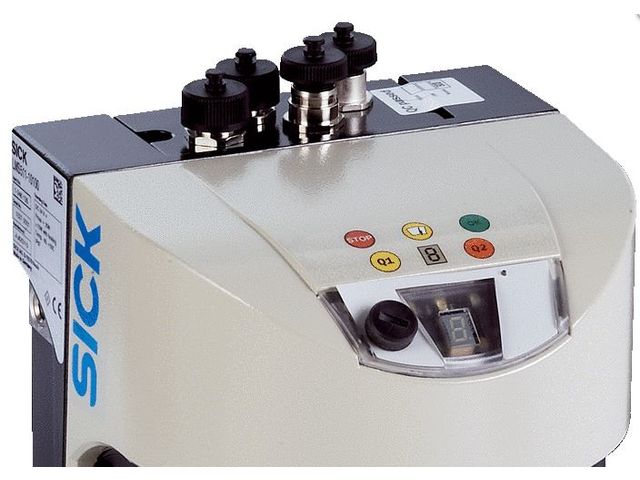

2D LiDAR sensors - LMS511-11100 Lite

Laser position sensors

• Impression: - Imprime sous haute résolution des textes et des logos pouvant mesurer 70mm de haut - Résolution d’impression de 180dpi (points par pouce) - Vitesse d’impression de 550mm/s -...

Ask for a quote

Presentation

Reliable and precise, even over long distances
The LMS5xx 2D LiDAR sensor is the successor of the successful LMS2xx family. With numerous innovative functions, the LMS5xx increases the productivity of existing applications and opens up entirely new application possibilities. The new, ultra-fast multi-echo technology makes laser measurement applications less sensitive to weather conditions and increases the reliability of captured data. Reduced power consumption as well as intelligent self-monitoring functions ensures extraordinarily low total cost of ownership. With the two Lite and PRO variants, the right version is available for every application. The LMS5xx boasts the best price-performance ratio on the market in this sensor class.

At a glance
Powerful, efficient 2D LiDAR sensor for measuring ranges up to 80 m
Excellent performance even under unfavorable weather conditions due to multi-echo technology
Compact housing up to enclosure rating IP 67 and integrated heating for outdoor devices
Low power consumption
Quick signal processing
Several inputs and outputs
Synchronization of several sensors possible
