iiM AG measurement + engineering

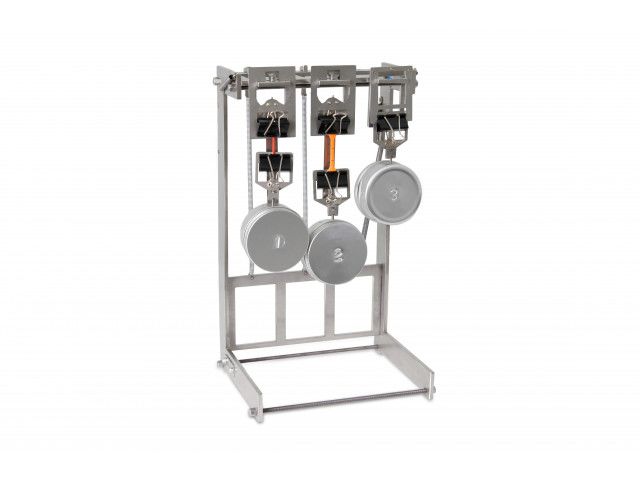

Hot Set Test

Devices and Software

Ask for a quote Receive Documentation Contact the supplier

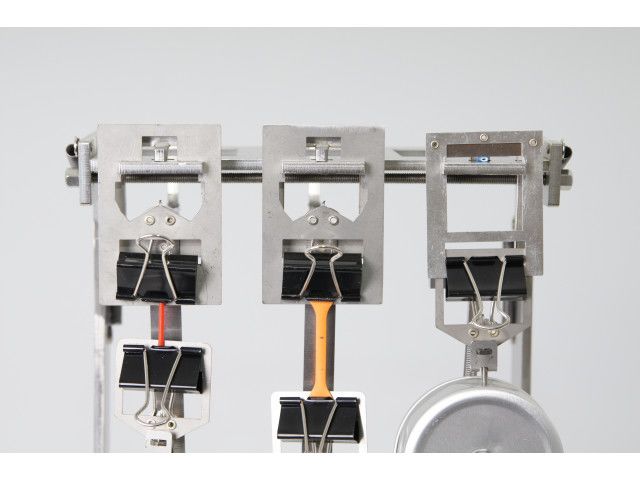

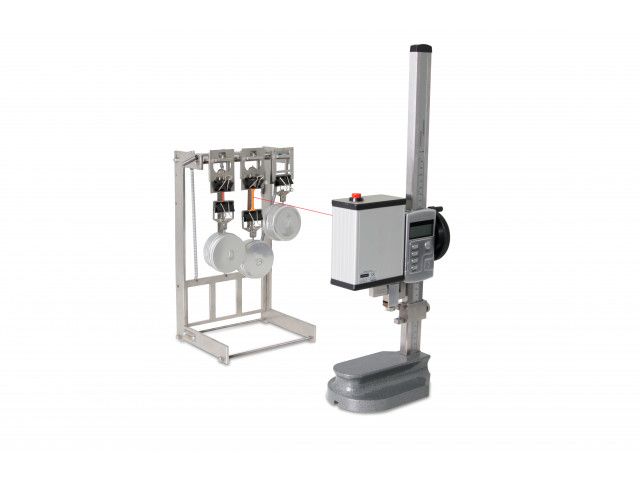

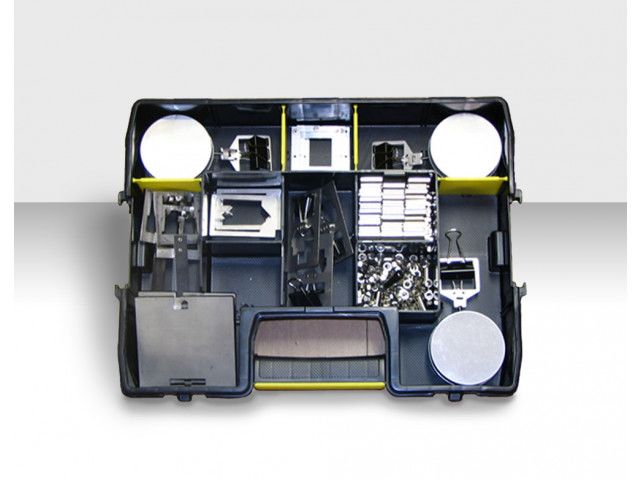

Device details: ? 2 in 1: device contains the Hot Set Test as well as the Heat Pressure Test ? Robust and compact set including the device and an equipment case ? Possibility to attach a thermometer directly near the sample ? Measurement according to the standards IEC EN 60811-507 (Hot Set Test) and IEC EN 60811-508 (Heat Pressure Test) regarding sample attachment and weight attachment ? Precise choice of weights due to practical containers ? Simultaneous measurement of up to 3 samples Optional - Hot Set Test complete ? Sample rack for heat pressure and heat elongation test ? Laser gauge ? Thermal heat oven UN55 Size (WxLxH): 585 x 514 x 784 mm (23 x 20.2 x 30.9“) Weight: 57 kg (125.6 lbs) Volumen: 53 l Air exchange rate: 8-20x ? Thermal heat oven UN110 Size (WxLxH): 745 x 584 x 864 mm (29 x 23 x 34“) Weight: 74 kg (163 lbs) Volumen: 108 l Air exchange rate: 8-20x

Download the complete technical features

OTHER PRODUCTS DEVICES AND SOFTWARE FROM iiM AG measurement + engineering

Sample Alignment Device

Sample Alignment Device

 Ask for a quote

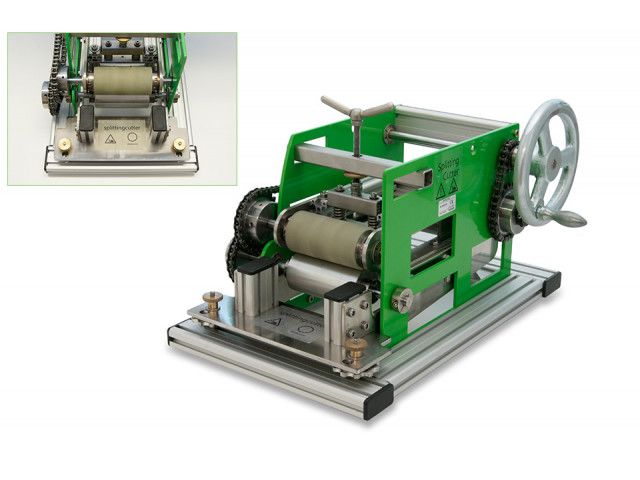

Splitting Cutter

Splitting Cutter

 Ask for a quote

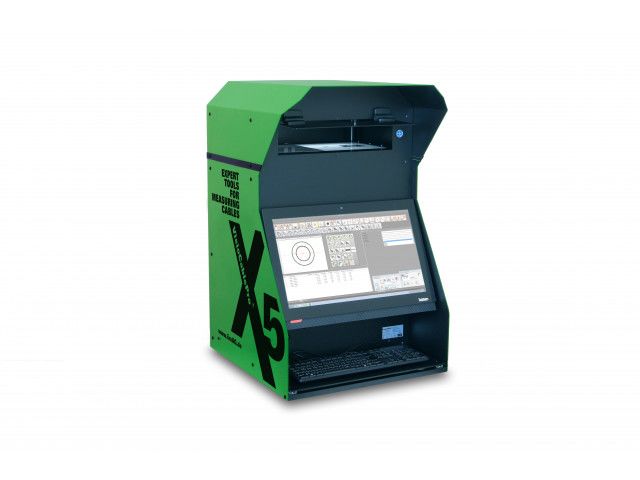

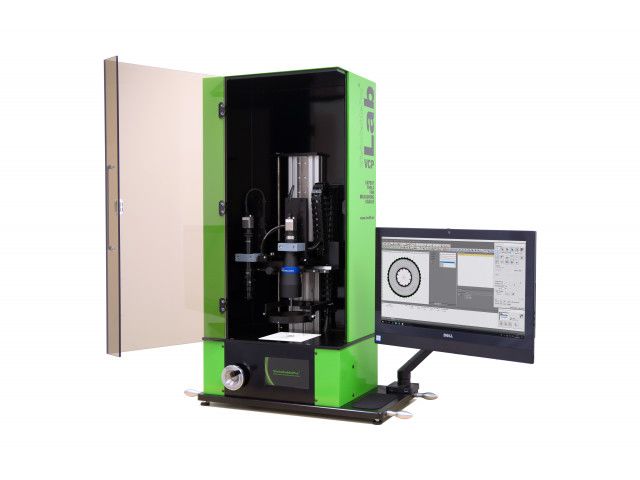

Cable measuring device VCPLab

Cable measuring device VCPLab

 Ask for a quote

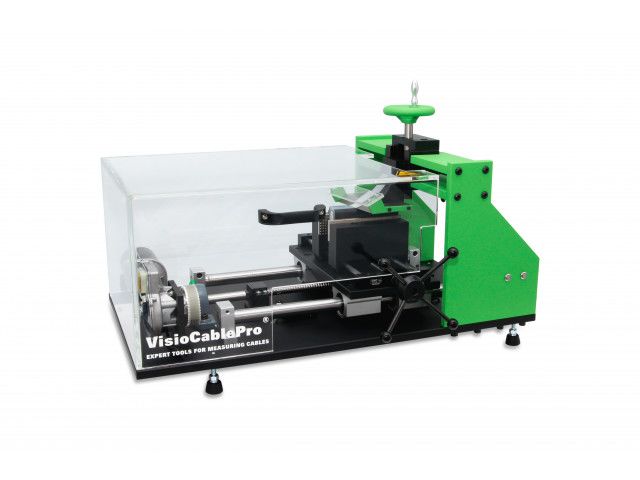

Splitting Cutter SC-PE

Splitting Cutter SC-PE

 Ask for a quote

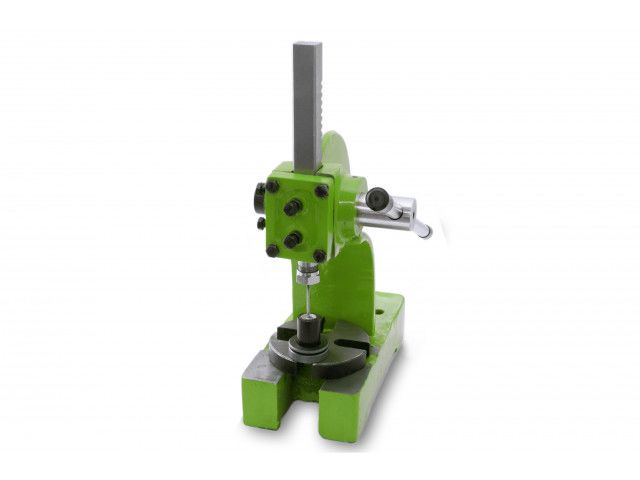

Core Removal Punch - CRP

Core Removal Punch - CRP

 Ask for a quote

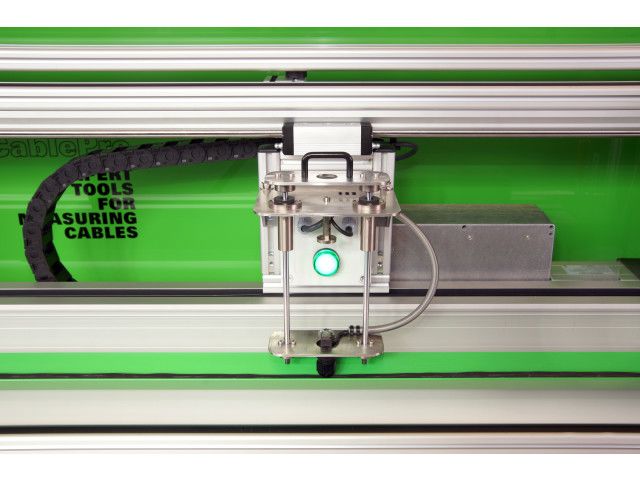

Twist Length Detector TLD

Twist Length Detector TLD

 Ask for a quote

Check out all the products from devices and software from IIM AG MEASUREMENT + ENGINEERING

INTERNET USERS ALSO CONSULTED ON THE CATEGORY DEVICES AND SOFTWARE

Drivers and Controllers for piezo actuators: Controller UC45

Drivers and Controllers for piezo actuators: Controller UC45

 Ask for a quote
Cut Strip Terminate : Options : PullTester 25

Cut Strip Terminate : Options : PullTester 25

 Ask for a quote

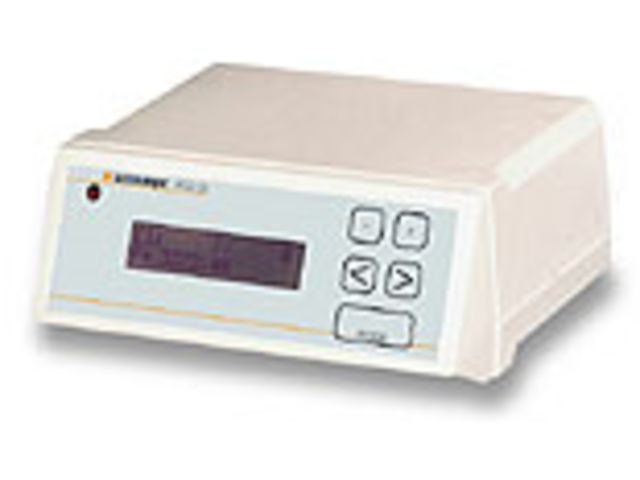

Crimp Force Monitor : ACO 05

Crimp Force Monitor : ACO 05

 Ask for a quote

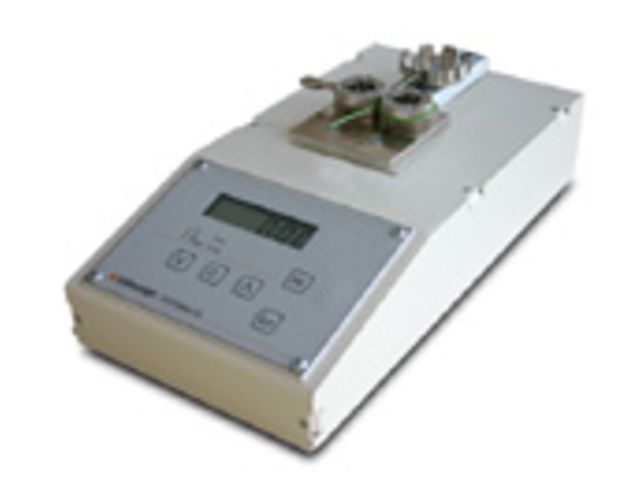

Pull Force Testing Device : PullTester 25

Pull Force Testing Device : PullTester 25

 Ask for a quote

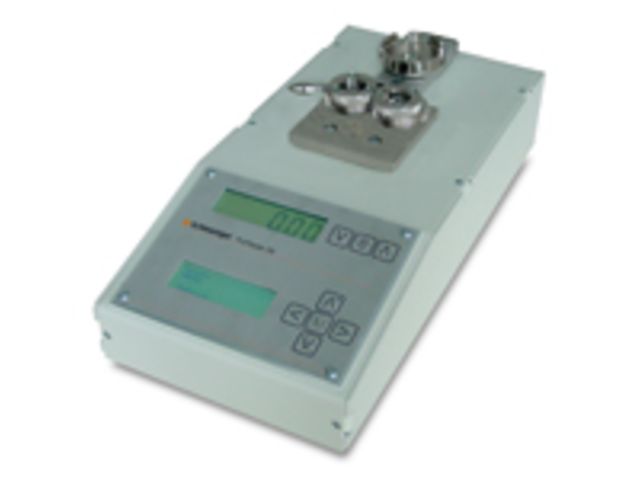

Pull Force Testing Device : PullTester 26
