Gas mixing systems for 2 defined gases, designed for a variety of industrial applications with high flows and fluctuating gas mixture production requirements.
Capacity range from 0 to approx. 161 Nm3/h.
For the exact pressure and flow capacity ratios, please refer to the data sheet.
Note: System only works with sufficient buffer volume (100 to 250 litres depending on gas mixing capacity).
Easy operation:
-

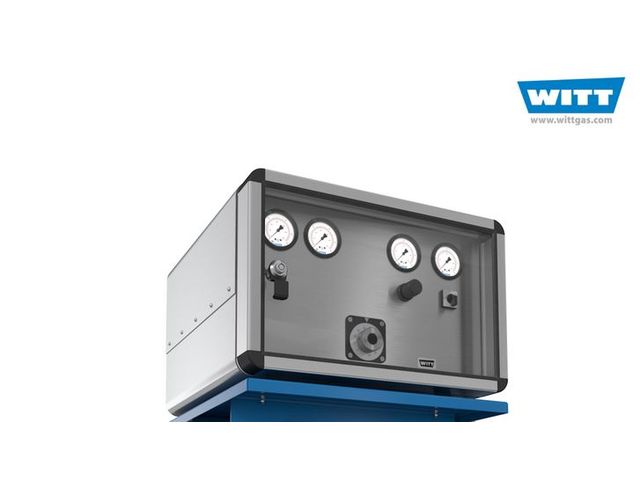

a proportional mixing valve (-2ME) with a control knob and %-scale provides infinitely variable mixture settings
-
gas mixture withdrawal possible from zero to the maximum flow capacity
High process reliability:
-
independent of pressure fluctuations in the gas supply
-
intermittent gas mixture withdrawal possible
-
lockable transparent door for protection of settings
-
splash-proof and robust stainless steel housing
Options:
-
for flammable gases available as Ex-version with separate control cabinet without electrical equipment as MP-version
-
alarm module NXT+: integrated inlet pressure monitoring
-
with digital display for pressure (with analogue pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection of alarms, interfaces for controlling external alarms etc.
-
integrated gas analysis for the monitoring/control and documentation of the gas mixture production
-

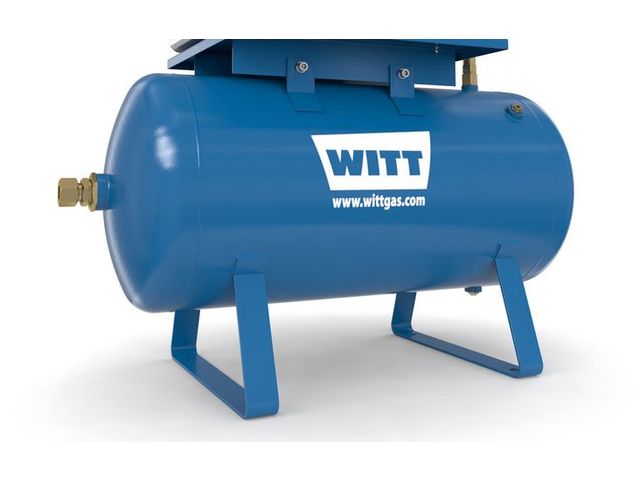

gas mixer mounted on gas mixture buffer tank for a more convenient installation
Welding & Cutting
Food Industry
Diving Technology
Helium Leak Test
