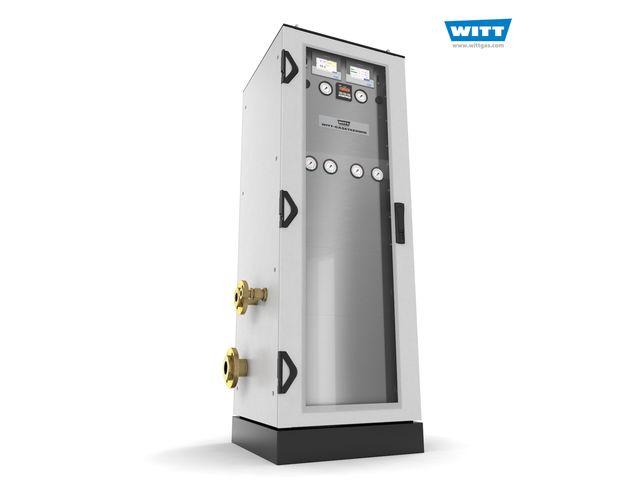

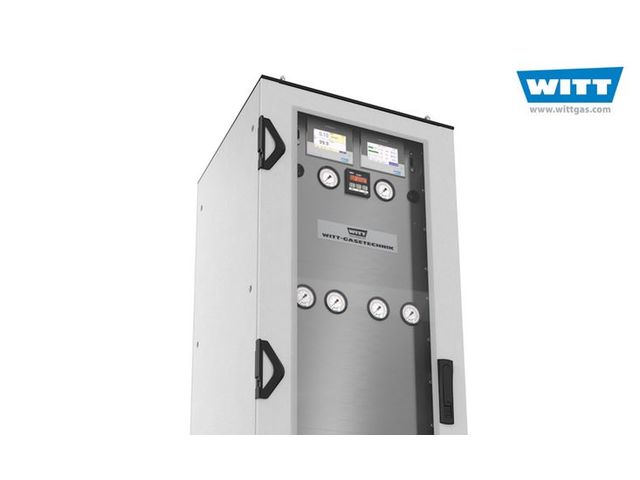

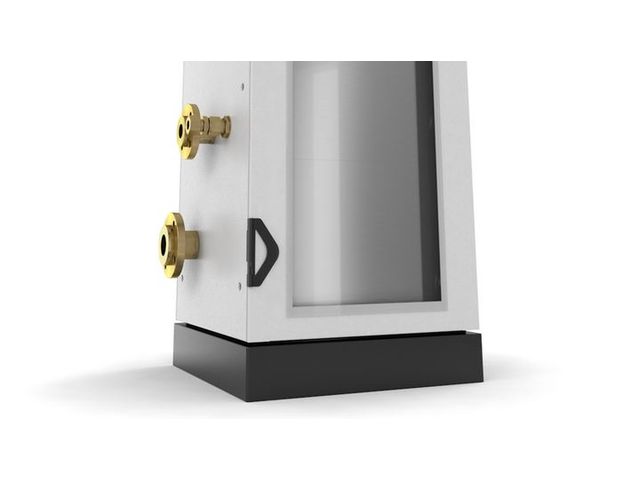

GAS MIXER MED-MG for synthetic air

MED-MG 50-2ME GB A
MED-MG 100-2ME GB A
MED-MG 200-2ME GB A
MED-MG 500-2ME GB A

Stationary gas mixing system specifically for the generation of synthetic medicinal air (according to EN ISO 7396-1). Medical device class IIb, CE marked according to directive 93/42/EEC.

Capacity range from 0 to approx. 675 Nm3/h.
For the exact pressure and flow capacity ratios, please refer to the data sheet.

Easy operation:

simple to operate via touchscreen
pre-set gas blend (adjustable inside gas mixer)
gas mixture withdrawal possible from zero to the maximum flow capacity

High process reliability:

highest integrity to supply safety by independent construction of all relevant safety components
2 independent integrated Oxygen Analysers for permanent control and documentation of the gas mixtures
self-monitoring of analysers additional monitoring via alarm module
monitoring of the gas supply with pressure transmitter
inlet pressures that are too low trigger an optical alarm and shut down the system
lockable transparent door and back panel for protection of settings
independent of pressure fluctuations in the gas supply
intermittent gas mixture withdrawal possible
USB connection for file transfer
Ethernet connection for network integration
triggering for solenoid valves provided by customer

Options:

additional heater for low ambient temperatures
fully automatic calibration
moisture analyser
