Presentation

Gas mixing systems for 2 defined gases, designed for a variety of industrial applications, particularly for all areas with sharply fluctuating mixed gas extraction quantities.
Capacity range from 0 to approx. 544 Nl/min.
For the exact pressure and flow capacity ratios, please refer to the data sheet.
Note: System only works with sufficient buffer volume (20 to 100 litres depending on gas mixing capacity).

Easy operation:

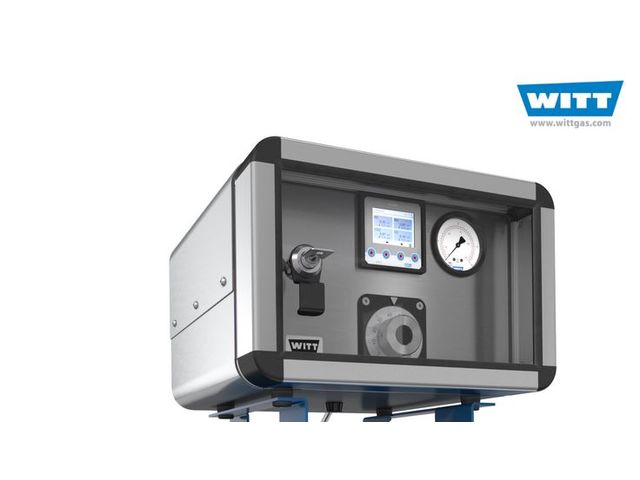

a proportional mixing valve (-2ME) with a control knob and %-scale provides infinitely variable mixture settings
gas mixture withdrawal possible from zero to the maximum flow capacity

High process reliability:

independent of pressure fluctuations in the gas supply
intermittent gas mixture withdrawal possible
lockable transparent door for protection of settings
splash-proof and robust stainless steel housing

Options:

for flammable gases available as Ex-version with separate control cabinet
alarm module NXT+: integrated inlet pressure monitoring
with digital display for pressure (with analog pressure transmitters) plus optical alarm, adjustable alarm limits, obligation of acknowledgement, protection
of alarms, interfaces for controlling external alarms etc.
integrated gas analysis for the monitoring/control and documentation of the gas mixture production

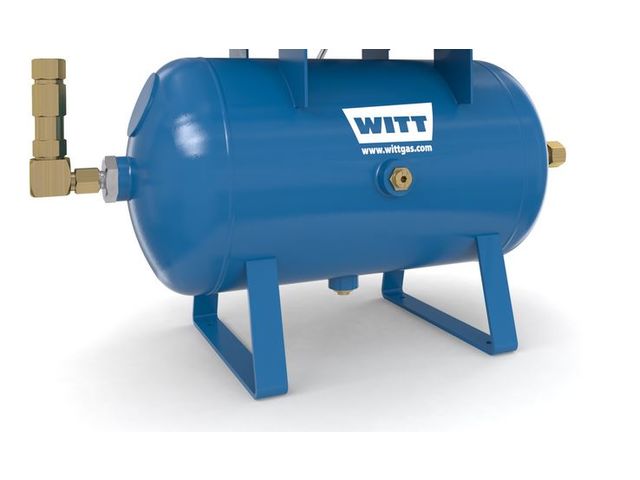

gas mixer mounted on gas mixture buffer tank for a more convenient installation
