Filters, regulators, lubricators for compressed air - Metal series

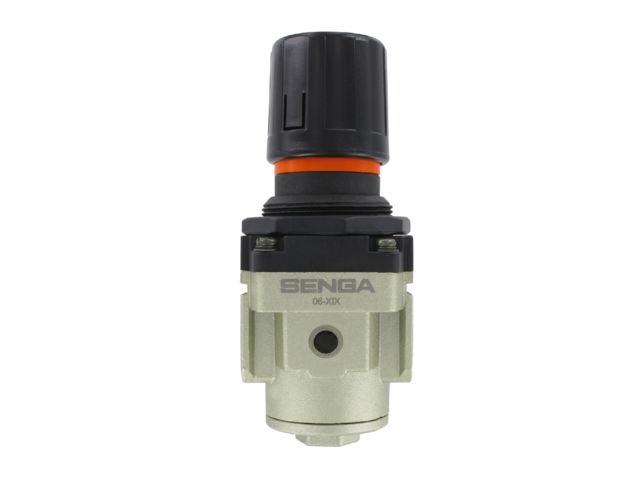

Pressure regulators

Mid level 600 BAR max pull pressure with 2.2 kW motor. Engineered for general use applications with max flow of 3,2 L/MIN.

“ ✔ Robust housing (metal) ✔ Interchangeable SMC ✔ High flow performance ”

Ask for a quote

Presentation

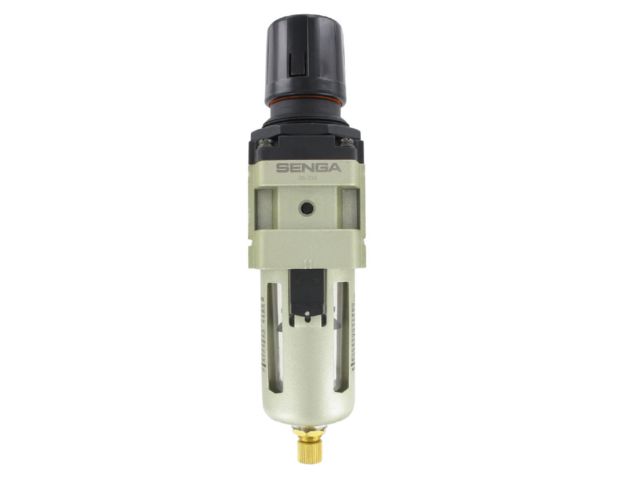

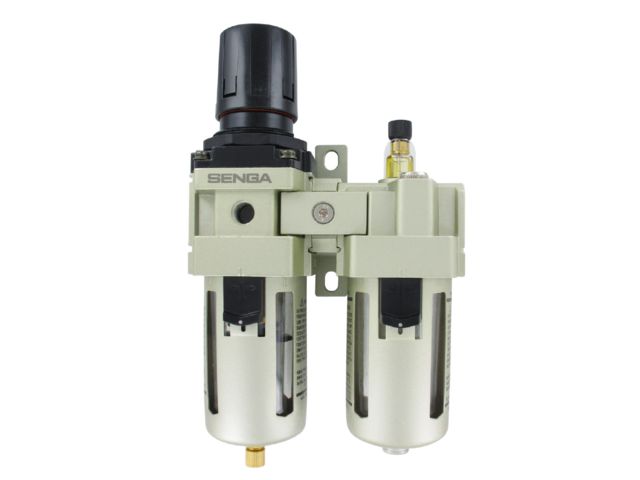

SENGA's metal series of compressed air treatment equipment (interchangeable SMC) includes filters, regulators and lubricators. With components made of aluminium, polycarbonate and bronze, this series combines robustness, quality and price. The series also features very good flow performance.

The maximum inlet pressure is 10 bar and the control range is between 0.5 and 8 bar.

The filtration degree of our filters is 40 μm.

We also offer mounting accessories, pressure gauges as well as filters to our range.

https://www.senga.fr/en/products-e-shop

Technical features

180 Series - G 1/4 Medium: compressed air Max. working pressure: 10 bar Working temperature: between -5 °C and +60 °C Filtration degree: 40 μm Adjustment range (bar): 0,5 ÷ 8 or 0,8 ÷ 8 (depending on model) Materials: aluminium - (body and tank protection); bronze - (filtering elements); polycarbonate - (tank); Gaskets: NBR
