SYSTEAL

Feet for 10mm slot profiles

Assembly systems and components

Ask for a quote Receive Documentation Contact the supplier

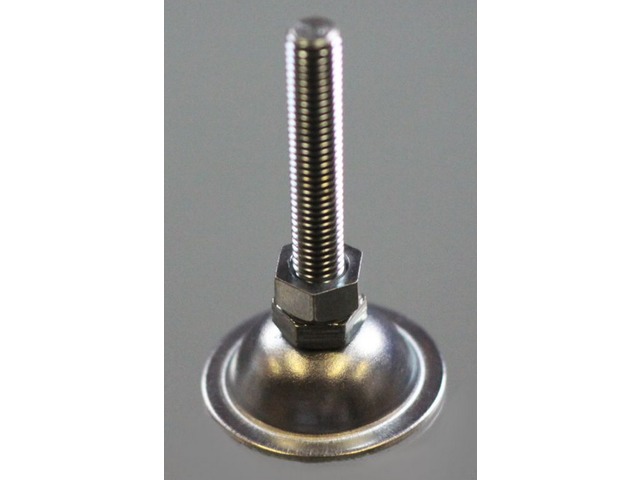

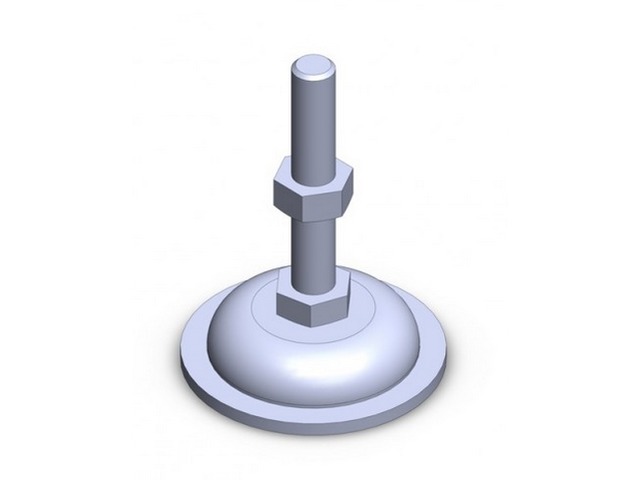

Feet for 10mm slot profiles (see compatible sizes below)

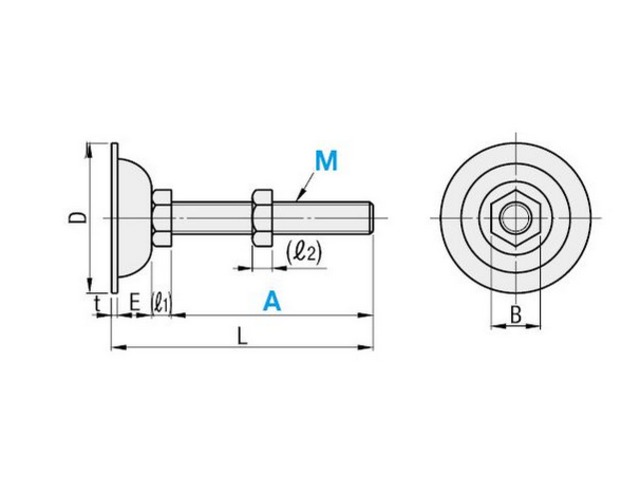

Dimensions in mm (please consult diagram)

M = M12

A = 75

L = 103

D = 60

E = 18

l1 = 8

l2 = 10

B = 19

t = 2.0


The foot is to be screwed onto the already threaded end of the profile.

Compatible profile sizes: (among 10mm slot profiles)

- 40x40

- 40x80

- 40x120

- 40x160

- 80x80
