Plate 40x80 for foot

Ask for a quote

Presentation

Allows a foot or wheel to be attached to the end of a profile.

Available in M12 or M16.

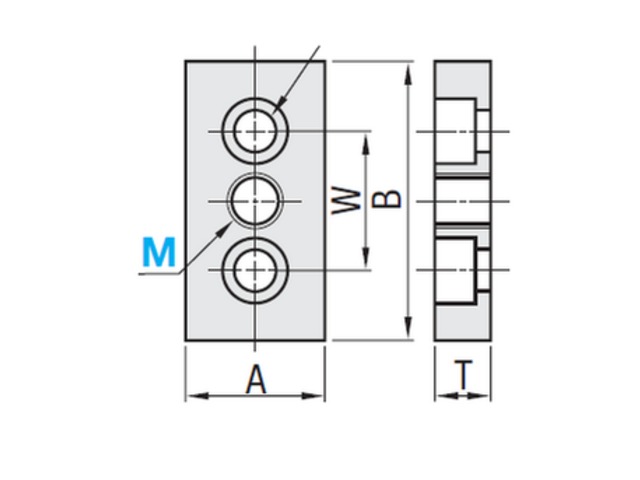

Dimensions (mm):

M = 12 or 16

A = 40

B = 80

W = 40

T = 16

The plate is attached with screws onto the profile's threaded holes.

Fixings not included.
