Electromagnetic insertion flowmeter Series FLOMAT

Electromagnetic flow meter

Ask for a quote

Presentation

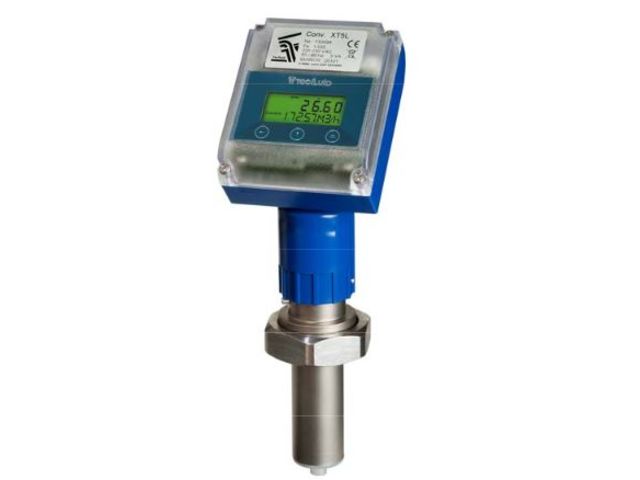

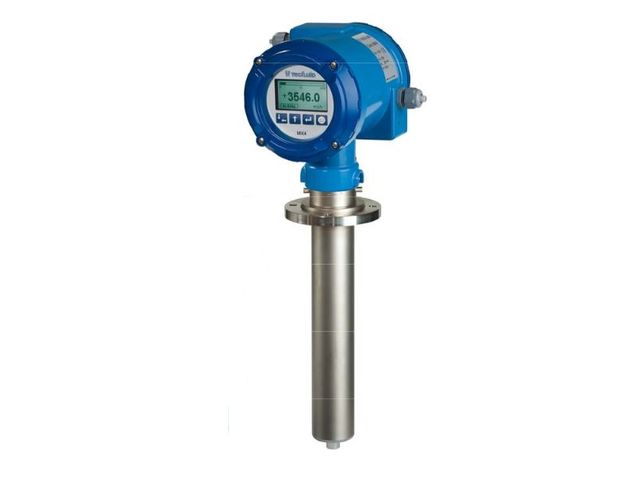

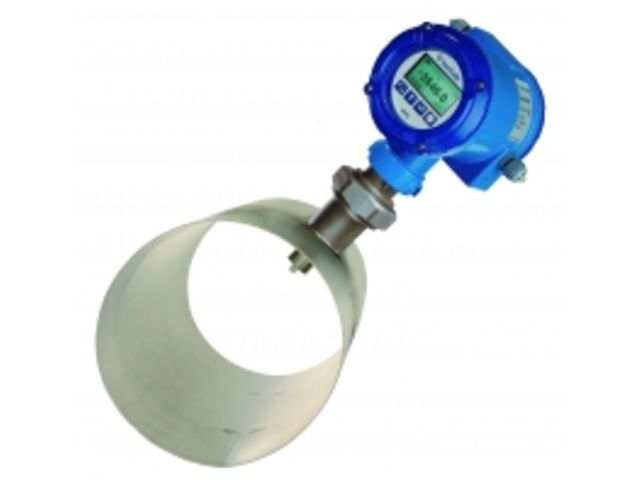

Electromagnetic insertion flowmeter. Alternating electromagnetic field for measuring avoids electrolysis. Suitable for big pipe sizes. Modular design in compact and separate version. Readings are independent of density, viscosity, temperature and liquid pressure. Without moving elements and with a low pressure drop. Suitable for liquids with solids. High chemical resistance. Can be installed in any position, provided that the pipe is always full (in vertical pipes upwards flow is recommended). Low power consumption. Application areas: Suitable for flow measurement of liquids with conductivity higher than 20 uS/cm. Technical specifications:

Measuring range:

2 m3/h … 113000 m3/h H2O

Accuracy:

+-3,5%

Connections:

DN40 … DN2000
TF o DIN Flange
2 ¼” BSP Threaded

Materials:

Body: EN 1.4404 (SS 316L), PVDF
Sensor head: PVDF
Electrodes: Hastelloy C, EN 1.4404, Zr, Ti and Tantalum

Output 4-20 mA /0 … 1000 Hz

Totalizer

Flow indication

Options:

High pressure design on request (only for flange connection)
Other flange standard on request
HART ™ protocol on request
