Electromagnetic flowmeter Series FLOMID

Electromagnetic flow meter

Mesh visor and yellow ear muffs in headband. Screened visor with ear muffs Mesh visor Ear muffs in headband Standard : EN 1731:1997 EN 352-1:1993

Ask for a quote

Presentation

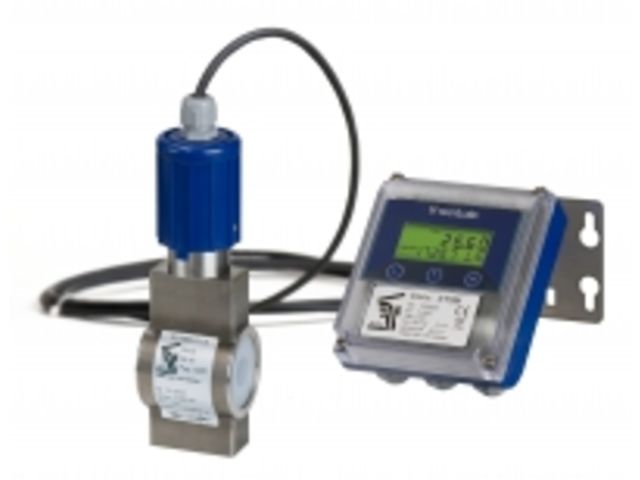

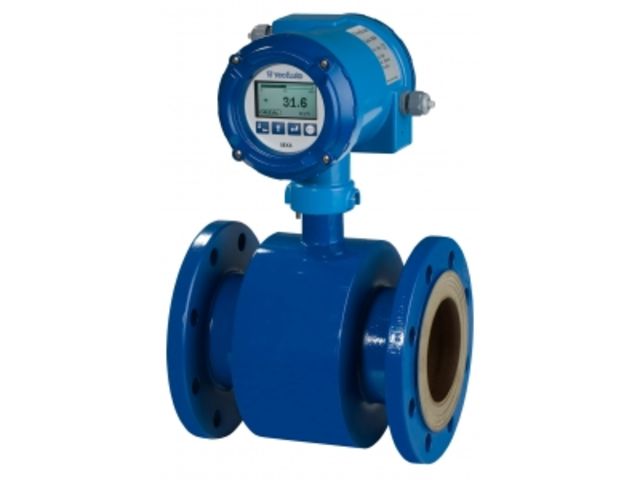

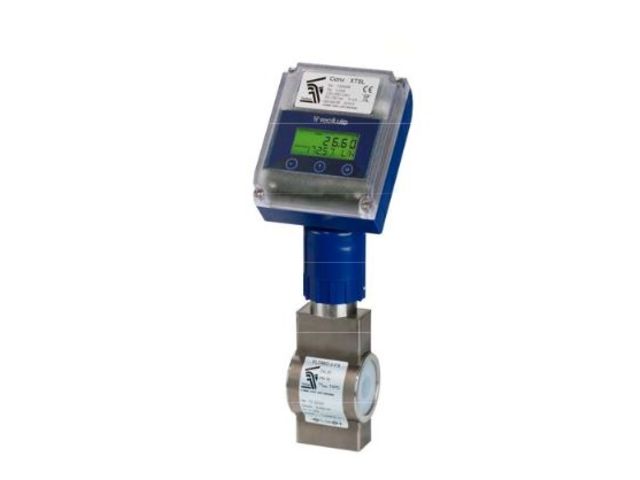

Electromagnetic flowmeter. Modular design in compact and separate version. Readings are independent of density, viscosity, temperature and liquid pressure. Without moving elements and with a low pressure drop. Suitable for liquids with solids. High chemical resistance. Can be installed in any position, provided that the pipe is always full (in vertical pipes upwards flow is recommended). Low power consumption. Application areas: Suitable for flow measurement of liquids with conductivity higher than 20 uS/cm. Technical specifications:

Measuring range:

10 l/h … 7000 m3/h H2O

Accuracy:

+-0,5%

Connections:

DN3 … DN500, others on request
DIN or ANSI flanges
Between flanges DIN or ANSI flanges
Sanitary connection
Others on request

Materials:

Body: EN 1.4404 (SS 316L)
Liner: PP, PVDF, Ebonite & PTFE
Electrode: Hastelloy C, EN 1.4404, Zr, Ti and Tantalum

Options:

High pressure design on request (only for flange connection)
Other flange standard on request

Converters:

MX4: flow indicator, totalizer, velocity, bidirectional, self-diagnosis

- 4-20 mA, 0...5000 Hz, 2 relay outputs, HART™ protocol, Modbus

- Power supply 90...265 VAC, 50-60 Hz, 12...48 Vdc

XT5: flow indicator, totalizer

- 4-20 mA, 0...10 000 Hz, HART™ protocol

- Power supply 230, 240, 115, 24 VAC, 50-60 Hz, 24 Vdc

XT5D: flow indicator, totalizer, preset dosage

- Output 1000 pulses/l

- Power supply 24 Vdc
