Diaphragm valve CA753

Dosing valve

The benefits Full production cycle (raw material → packaging) Can be adapted to fit all CNC machines High yield line at a speed of 3.5 to 4 sec. /workpiece Rapid change over of workpiece series...

“ - Small to large quantities - Liquid fluids - Rate more than 600 cycles per minute - Lightweight and compact - Few or no maintenance - Ideal for dispensing cyanoacrylates, anaerobic and other reactive fluids. ”

Ask for a quote

Presentation

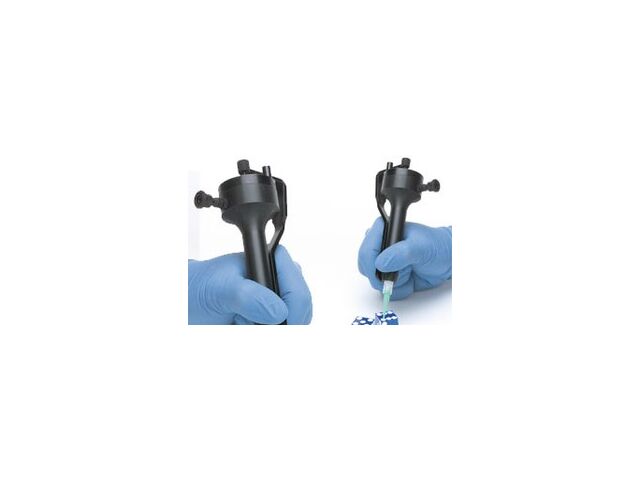

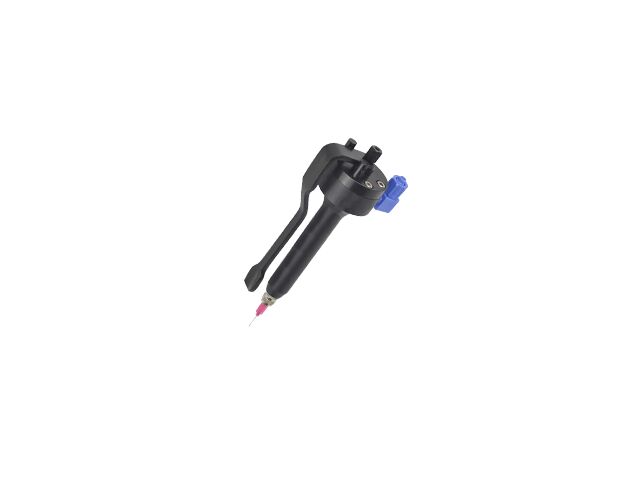

CA dispensing valves are diaphragm valves. The CA series (300, 200 and 100) offer great precision dispensing and
are ideal for the determination of mono-component products for dosing, filling, potting or assembly.

Made with quality materials: Delrin and Teflon® for the fluid chamber, seals in Teflon® or Viton and a patented diaphragm silicone covered with a Teflon film. The valve body is hardanodized aluminum with an ergonomic shape and size.

Each valve is precisely machined with high quality standards to ensure the reliability of operations and are laboratory
tested before shipment. The design is durable, maintenance is easy and calibration is quick.

Technical features

Dimension 86.02 mm x 43.90 mm Weight 174.1 Maximum pressure fluid 7 bar Control pressure 5 - 6.9 bar Fluid chamber Acetal Valve body Hard anodized aluminum Diaphragm Inert polymer Rate > 600 cycles / min.

Download the complete technical features
