Metering Valves MV400

“ - Large deposits (0,15cc to 4,5cc) - Liquids, fluids and pastes - Minimum repeatability of ± 2% - Simple and easy to calibrate - Semi-automatic or manual applications - Applications requiring high precision ”

Ask for a quote

Presentation

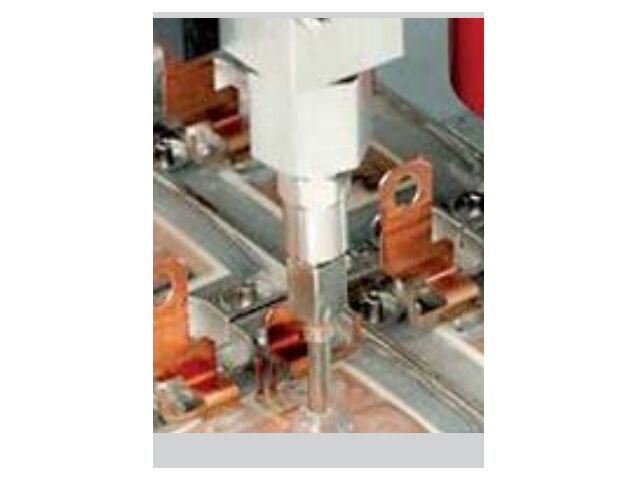

MV metering valves are linear motion valves. The MV series (200, 250, 300, 400 and 500) offer great precision dispensing and are ideal for one-component material dispensing as dosing, filling, potting or assembly.

Made with quality materials : stainless steel fluid chamber, seals in Viton or Teflon®, divorced valve control body in
anodized aluminum.

Each valve is precisely manufactured with high quality standards to ensure the reliability of operations and are
laboratory tested before shipment. The design is durable, the maintenance is easy and the calibration is quick.

Technical features

Dimension 229,1 mm x 121,2 mm Weight 1361g Maximum pressure fluid 82,7 Bar Pressure control 5,5 to 8 Bar Volume filled 0, 15cc –4,5cc Fluid chamber 303 stainless steel Valve body Hard anodized aluminum Rate > 600 cycles / min.

Download the complete technical features
