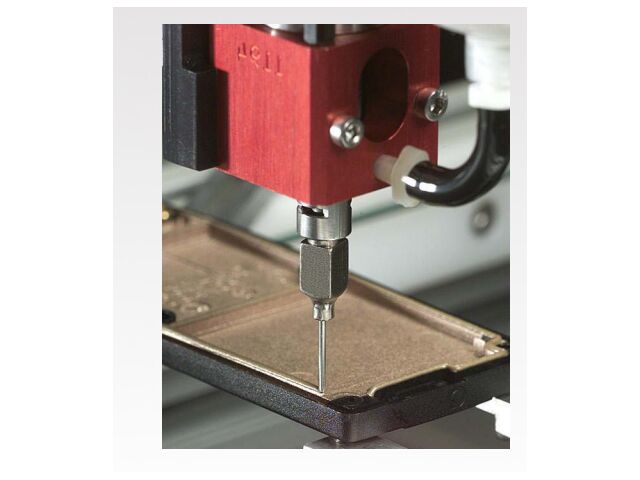

High pressure valve FC300

“ - Significant quantities - Liquids, fluids and pastes. - High resistance to pressure (241bar) - Minimum repeatability ± 5% - Simple and easy to calibrate - Manual or automatic applications - Suck - Back ”

Ask for a quote

Presentation

FC metering valves and SB 200 are high-pressure valves. The FC and SB 200 series valves were designed specifically
for products with high / medium viscosity and have a very good resistance to very high pressures.

Designed with quality materials: 303 stainless steel (316 on request) for the fluid chamber, seals in Viton or Teflon®,
divorced valve control body in anodized aluminum.

Each valve is precisely manufactured with high quality standards to ensure the reliability of operations and are
laboratory tested before shipment. The design is durable, the maintenance is easy and calibration is quick.

Technical features

Dimension 201mm x 29,21mm Weight 539g Maximum pressure fluid 241 bar Control pressure 2,5 à 7 bar Fluid chamber Stainless Steel Valve body Hard anodized aluminum Joints Viton and Teflon® Fluid input 1 / 4 NPT Rate > 600 cycles / min.

Download the complete technical features
