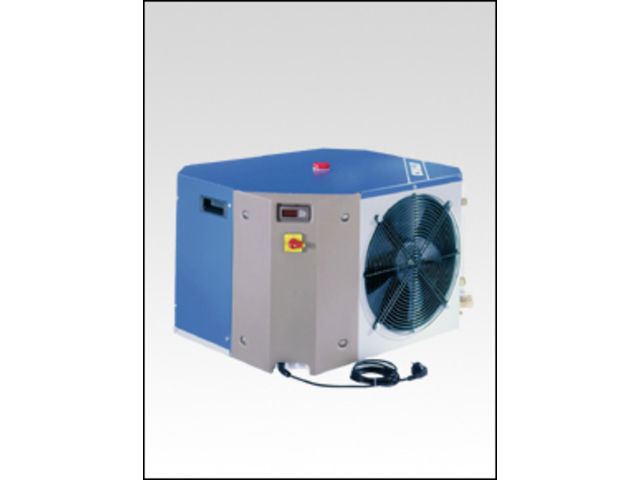

CWK Shell in tube (4 - 25 kW)

Standard equipment:

- Stainless steel frame
- Panels in RAL paint upon request
- CE standard / DIN ISO 9001-200
- Selectable position of E-Box at 3 sides
-Temperature control through digital thermostat
- Common alarm potential free
- 400V / 3Ph / 50Hz
- 24V AC - control circuit
- Chiller build for IP54
- Low noise scroll compressor
- High pressure switch (TÜV approved)and low pressure switch
- Environment friendly refrigeration R407C
- Operation temperature max. 42°C
- Temperature tolerance:+/- 1,0K (CWK 30 - 50) ; +/- 1,5K (CWK 70 - 220)
- Air filter
- Emulsion closed cooling circuit 10 - 20°C
- Oil closed cooling circuit 15 - 25°C
- CH-pump with carbide / carbide shaft seal for emulsion
- CR-pump with carbide / carbide shaft seal for oil
- Flow switch and antifreeze thermostat

Options:

- 24V DC - control circuit
- Special voltage incl. 60Hz
- Stop process through temperature alarm
- Differential temperature control depending on ambient temperature
- Harting connectors
- Remote control
- Wire end labeling
- Winter start up regulation
- Weather proofed cabinet
- Condenser water cooled or external
- Refrigeration R134a / 404A
- Tight temperature control with hot-gas-bypass
- Operating temperature > 42°C ambient
- Fluid set point max. + 40°C
- Fluid outlet manometer
- Ball valve for drainage
- Ball valves for fluid inlet and outlet
- Stainless steel tank (open)
- Wheels
- Low noise version
- Level switch for pump protection with stainless steel tank open
- Gear pump
