Cutting and engraving laser machine | MECALASE

Laser cutter

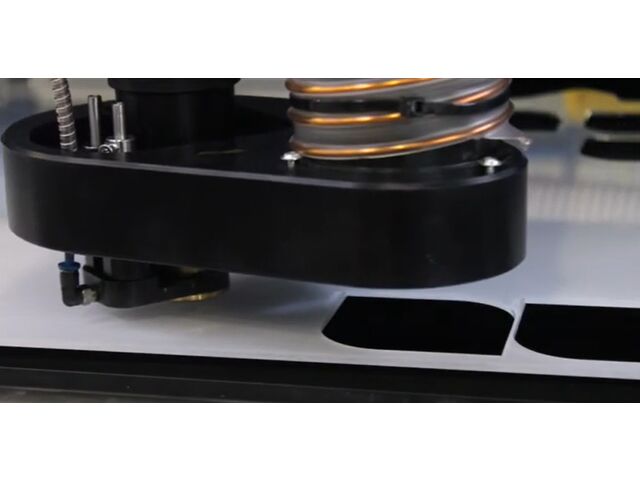

“ Numerical control : Power Automation MECANUMERIC CN7000, ISO code Sealed CO2 laser driven under mobile gantry and only one reversing mirror towards the focusing head : easy maintenance and low operating cost. FOMEC focusing head : focus lens 2,5 or 5 inches with coaxial suction Fume suctions by table divided into sectors with automatic zone selection Standard table in anodized aluminium bars and anti reflecting profiles Numerous CO2 laser sources available ”

Ask for a quote

Presentation

Fixed table, mobile laser, average power. Sealed laser sources from 100 to 600W enable to get a very low operating cost because these laser do not require exterior laser gas and they have a life time of 15000 to 18000 hours, before any gas reloading.

CUTTING EQUIPMENT OPTIMIZED FOR MACHINING OF FOLLOWING MATERIALS WITH
STANDARD FOCUSING HEADS :

Acrylic
Plastic materials
Wood and by-products

THE UTILIZATION OF A FOCUSING HEAD WITH HIGH PRESSURE LENS GIVES THE POSSIBILITY
TO CUT IN ADDITION :

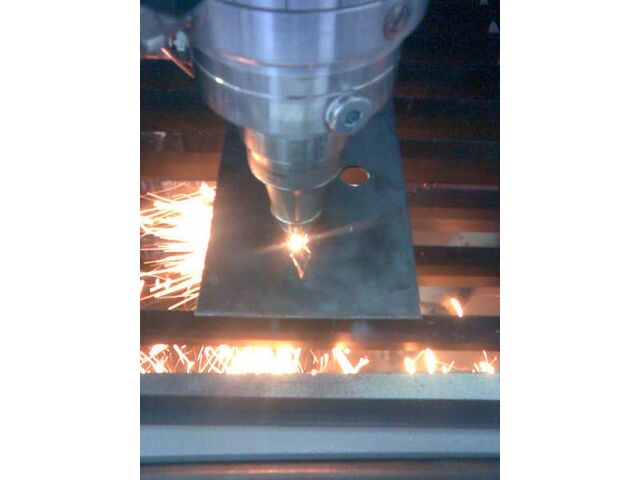

Soft steel : thickness 4 mm with 300W, 6 mm with 600W
Stainless steel : thickness 1,5 mm with 350W, 3 mm with 600W

OPTIONS :

Vision registration/compensation system by camera (GTK, OPTISCOUT)

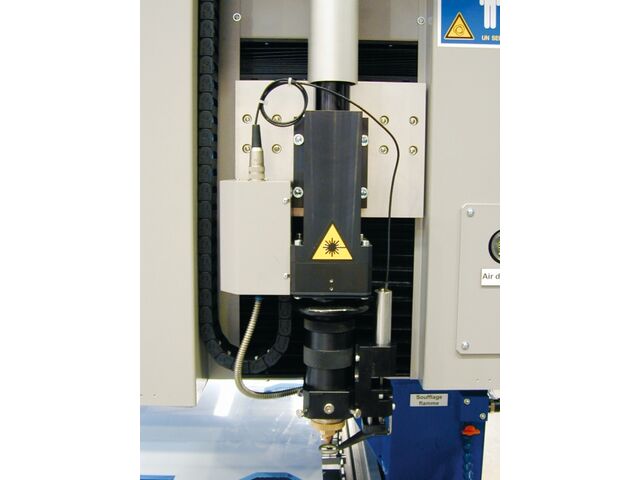

PRECITEC high pressure focusing head PRECITEC for steel cutting.
Filtration system and fume treatment.
Aluminium honeycomb special tables.
Interchangeable tables for loading / unloading in concealed time.
Automatic compensation system of flatness defects.
SIEMENS numerical control and SIEMENS servomotors.
Complete safety enclosure.

Technical features

Transmission by 4 ball screws (2 ball screws on X axes), numerical Z axis Motorisation : 4 DC servomotors with continuous current Guidance : precision linear rails with preloaded ball slides Numerical control : Power Automation MECANUMERIC CN7000, ISO code Sealed CO2 laser driven under mobile gantry and only one reversing mirror towards the focusing head : easy maintenance and low operating cost. FOMEC focusing head : focus lens 2,5 or 5 inches with coaxial suction Fume suctions by table divided into sectors with automatic zone selection Standard table in anodized aluminium bars and anti reflecting profiles Numerous CO2 laser sources available
