Cutting and engraving laser machine | LASEC

Laser cutter

We have many standard design solutions to suit a variety of applications from pick and place, assembly and cutting applications to manual assembly operations. • Complete package solution eliminating...

“ - Repeatability in mm: +/- 0.08 - Resolution in mm: 0.0025 - Acceleration: 10 m.s2 ”

Ask for a quote

Presentation

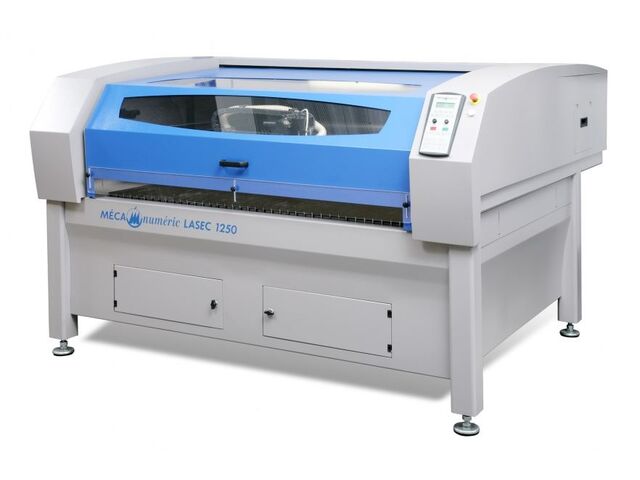

Fixed table, mobile gantry, fixed laser and mobile mirrors. This equipment can realize cutting in vectorial mode and engraving in raster mode.

EQUIPMENT OPTIMIZED FOR CUTTING OR ENGRAVING ON FOLLOWING MATERIALS :

Plastics (except with PVC basis : chemical risks)
Synthetic resins
Wood and by-products
Leather
Soft stones, marble, granite (only engraving)
Mineral glass (only engraving)
Fabric
Cardboard

OPTIONS :

Numerical Z axis - travel 80 mm for UP/DOWN of the focusing head
Fume suction and treatment unit with suction unit TEKA LMD517 with 3 filters + active carbon filters (1500 m3/h - 2800 Pa - 1,5 Kw ) + 2 manual shutters for area selection
Table top in aluminium honeycomb
Laser pointer with red laser diode
Automatic or manual debatcher for soft materials
Autofocus for focusing lens

Technical features

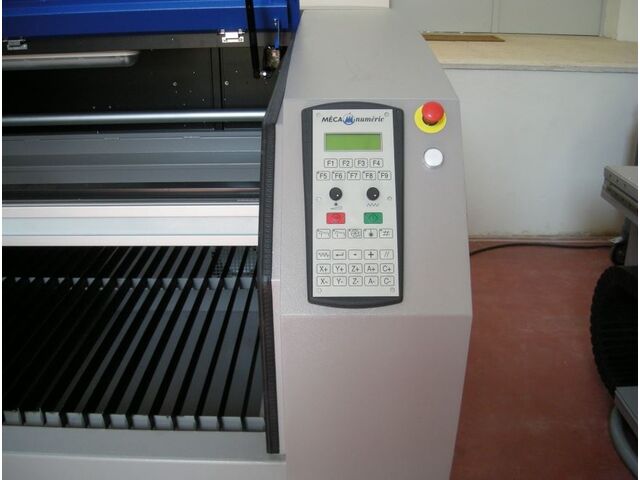

Transmissions by notched belts on X and Y (double belt on Y) and by ball screws on Z axis Guidance : precision linear rails with preloaded ball slides. Fixed CO2 laser, mobile optics by 3 silicon mirrors, integrated shutter. Numerical command in real time CN R3V4, DSP (Digital Signal Processor) combined with FPGA (Field-Programmable Gate Array) Motorisation : brushless servomotors with absolute encoders + measure gauge on Y axis (for increased precision in raster mode) Fume suction by inferior table Standard table top in anodized aluminum bars and special anti reflection profiles.
