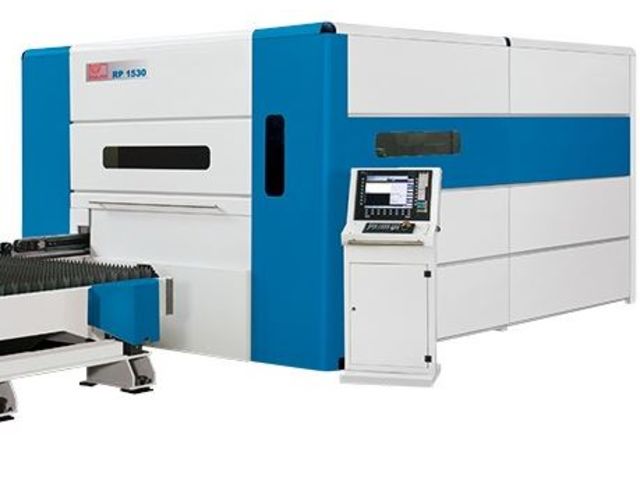

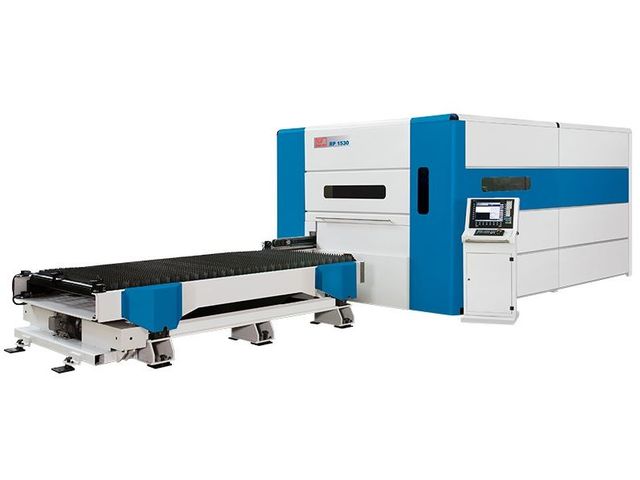

With efficient fiber laser for large plates
Automatic table changer and massive gear racks for axis drives for extremely high productivity
-
Robust machine frame made of welded, low-stress annealed steel construction
-
Massive gantry design capable to absorb high axis loads and acceleration forces
-

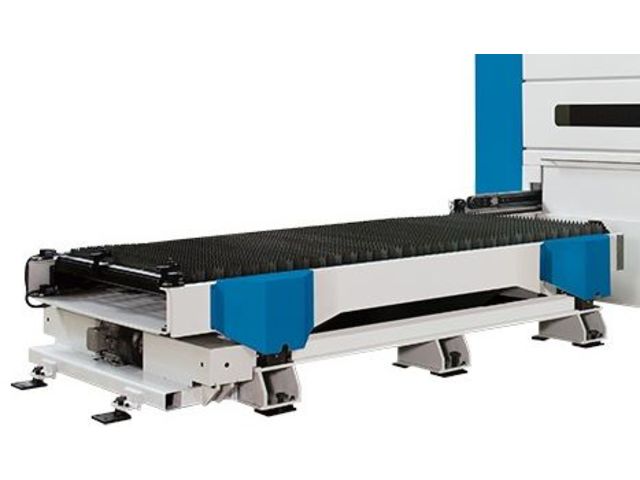

Automatic change table system with electric height adjustment minimizes down-times; table can be loaded and unloaded during the cutting process
-
Small parts, residue and slag are transported on a conveyor underneath the cutting table towards the machine side: for short transport distance with quick and easy removal
-
Maintenance-free beam guide is provided by a flexible fiberoptic cable and ensures long life of the laser source
-
Laser cutting process takes place within a sealed, laser-safe enclosure, whereby machining can be monitored through a protective glass window
-
CNC control based on Sinumerik 840 D with application-specific user interface
-
Technology database includes cutting parameters and pre-set cycles for various metals
-
CAD/CAM software with various nesting options to ensure optimal use of materials

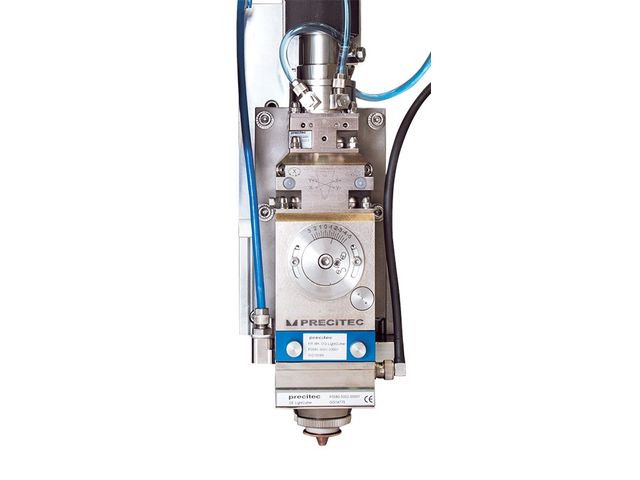

High-capacity cutter head
-
the HPSSL high-capacity cutter head ensures constantly high cutting speeds and cut quality even at varying operating temperatures
-
digitally adjustable work distance between cutter nozzle and workpiece
-
quick change-over between three focal lengths without changing the Tool Center Point (TCP)
-
simple manual focus position adjustment to maximize cut quality at various plate thicknesses
-
protective window can be replaced as consumable part to ensure extra long life of the focusing lens
