Compact Cam

Positioners and Tightening components

Ask for a quote Receive Documentation Contact the supplier

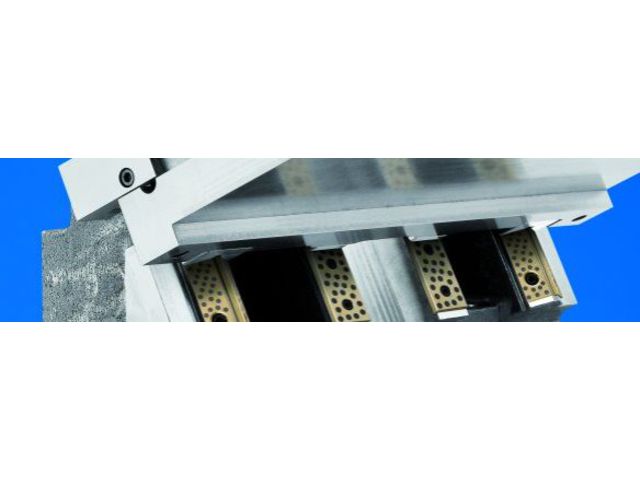

The FIBRO Compact Cam (FCC) tool slide has been developed in close conjunction with the IFU (Institiute for Metal Forming Technology) in Stuttgart.

Close contact with machine tool manufacturers and press operators has enabled us to design the FCC tool slide to be extremely practical and user friendly.

Throughout the whole design and development process relevant parts have been checked and approved against FEM (Finite Element Method) calculations.

The suspended FIBRO Compact Cam (FCC) tool slide is available as standard in widths 400mm, 500mm, 600mm, 700mm, 800mm, 900mm and 1000mm.

There is a standard angle increment of 5° ranging from 0° to 75° working angle. All FCC tool slides from 0° to 45° have a removeable pre-acceleration device in the form of a roller and curved wedge.



  • slide and slide bed manufactured from EN-JS 1060 (GGG 60)
  • driver manufactured from EN-JS 1070 (GGG 70)
  • ideal sliding combination of bronze with solid lubricant against ground steel components
  • will acommodate high side loads thanks to prism guides and / or vertical guides
  • compact design
  • innovative clamp fixing means easy removal from tool
  • good access when assembled
