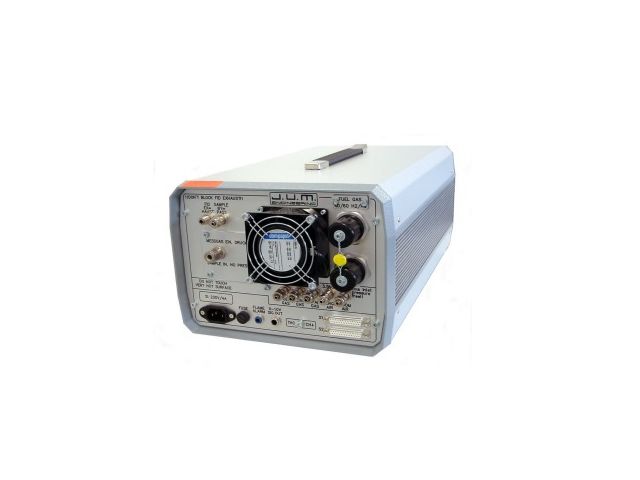

Compact and Portable FID COV THC ANALYZER | JUM 3-200

The JUM 3-200 is a fully heated transportable FID that has been used successfully in international markets for over 30 years. Also among other portable gas FIDs, the JUM 3-200 is the first fully heated transportable FID built using a high pressure back pressure sampling filter. It is widely distributed in the industry and the stack testing community and is highly regarded for its ruggedness, high precision, sensitivity and stability. Its optional, highly secure 50 liter low pressure metal hydride fuel tank can easily be mounted on the left side panel and allows uninterrupted operation for a minimum of 45 hours. This fuel tank can be self-filled at a low pressure of just 25 bar. No special adapter needed. A standard 2-stage pressure regulator with an output of 30 bar is sufficient

The JUM 3-200 is officially certified to be 100% identical to the JUM VE7 and JUM 3-300A analyzers. TÜV has confirmed that it fully complies with QAL 1 (EN 14181 and EN ISO 14956) and EN12619 regulations. They are also fully compliant with USEPA 25A and 503.

The JUM 3-200 / OVE is a 100% identical version at 20% cheaper thanks to the use of a disposable sample filter in the heated oven. With this exception, the JUM 3-200 / OVE is a 100% identical analyzer.


Characteristics;
Maintenance-free sample filter rear purge system allows filter cleaning without removing it (optional automatic)
Integrated burner air generator, no external air cylinder required
All components in contact with the sample fully heated and controlled at 190 degrees C
Sampling pressure and integrated sampling pumps
Automatic switch-off alarm and contact
Quick response within 1 second
Low fuel consumption
Very selective
Microprocessor controlled PID type temperature controller
Remote control for sample, calibration and back purge is standard
Optional remote or automatic range change


Applications:
Monitoring of hydrocarbon emissions from flue gases
Closure monitoring
Analysis of gross emissions from exhaust vehicles
Catalytic converter test
Measure the combustion efficiency of the engine
Monitoring of contamination by hydrocarbons in air and other gases
Regeneration control of carbon absorption
Detection of traces of hydrocarbons in purity gases used in the semiconductor industry
LEL solvent-laden air monitor
