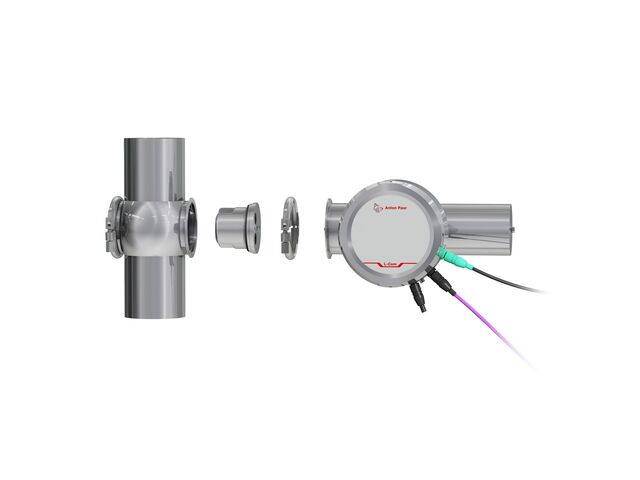

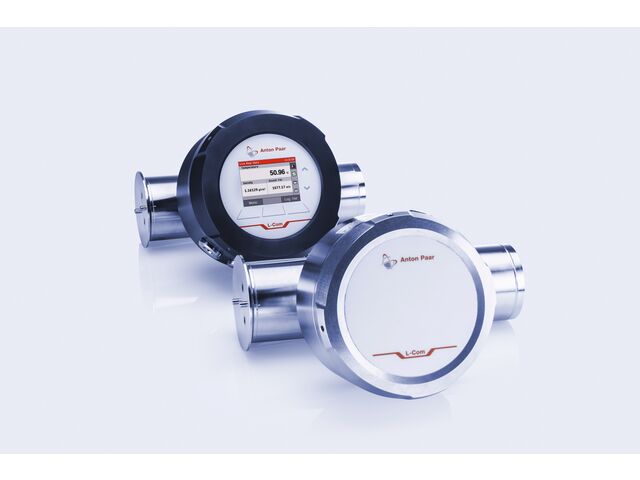

Combined density and sound velocity sensor: L-Com 5500

Composition of liquids and density

Find out more

“ Minimized costs – a single sensor for measuring 3-component mixtures The smart combination of process density and sound velocity sensors enables highly sophisticated concentration measurement with one single instrument. Concentration determination of 3-component mixtures Formaldehyde-methanol-water Sucrose-inverted sugar-water Alcohol-extract-water With sensor dimensions of 260 mm x 145 mm x 200 mm (L x W x H) L-Com 5500 can be mounted in the smallest space using various process connections which are common and standard for all industries. Benefit from in-house concentration formula development for your application, which is then integrated into your instrument. Highest accuracy – reliable measurement under changing process conditions The L-Com 5500 sensor combines the outstanding accuracy of L-Dens 7500 with the sound velocity measurement of L-Sonic. L-Com 5500 stands for: The highest accuracy on the market (5x10-5 g/cm3 for density measurement and 0.1 m/s for sound velocity measurement) The highest accuracy measurement of process temperature to avoid process temperature influences Hermetically sealed U-tube to withstand the humidity condensations resulting from temperature fluctuations between ambient and process conditions Pressure-compensated measurement values due to the optional pressure sensor Same process media conditions during the determination of both density and sound velocity due to measurement in one cycle Unstable process conditions are compensated and changing process and environmental conditions have no impact on the performance of L-Com 5500. Be flexible – inline, bypass, and tank installation Different options are available for all types of process installations and can be integrated easily and cost-efficiently: inline, bypass, and tank installation with integrated pump inline and bypass installation without pump For inline, bypass, and tank installations, L-Com 5500 can be combined with different Anton Paar pumps (Inline Pump 520, integrated sample pump) to ensure constant media flow through the sensor, guaranteeing stable measurement values. For inline and bypass installations, standard process adapters without the need for a pump are available. Save time – hassle-free right from the start L-Com 5500 delivers reliable concentration measurement values right from the beginning. Delivered ready-to-use, including the required concentration formula, the sensor only needs the usual adjustment of the process to the laboratory values. Factory-adjusted sensors – ready-to-use Integrated concentration formulas Save money – low operating costs for the whole sensor lifetime You simply fit the sensor and can rely on concentration measurement at the highest accuracy over the entire working life of the sensor. No additional operating costs for consumables or maintenance have to be calculated, which enables you to keep competitive production costs. Robust stainless steel housing Maintenance-free No consumables ”
